LDO10C

Features: • 10 A output current rating• Input voltage range:3-13.8 Vdc• Adjustable out voltage:0.59-5.1 V• Factory set with power good option• Excellent transient response• Power enable• Minimum airflow• Small package• Termination voltage capab...

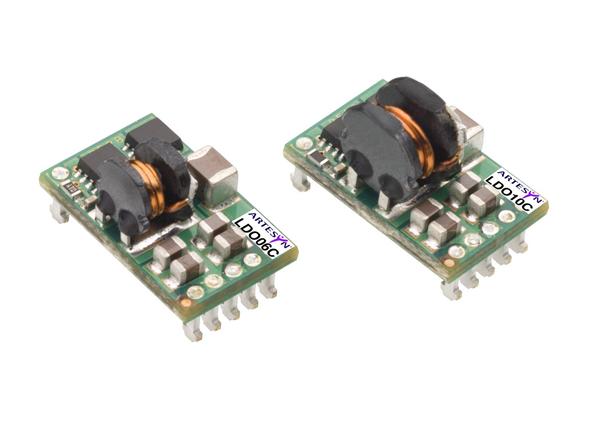

product image

LDO10C Picture
See larger image
SeekIC No. : 004393120 Detail

LDO10C: Features: • 10 A output current rating• Input voltage range:3-13.8 Vdc• Adjustable out voltage:0.59-5.1 V• Factory set with power good option• Excellent transient respo...

LDO10C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LDO10C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 10 A output current rating
• Input voltage range:3-13.8 Vdc
• Adjustable out voltage:0.59-5.1 V
• Factory set with power good option
• Excellent transient response
• Power enable
• Minimum airflow
• Small package
• Termination voltage capability
• RoHS compliant




Specifications

Output voltage See Note 5 ............................0.59-5.1 V
Output setpoint accuracy 0.1% trim resistors..... ±1.0%
Line regulation Low line to high line ...................±0.2%
Load regulation Full load to min. load................. ±0.5%
Min./max. load................................................. 0 A/10 A
Overshoot At turn-on.................................... 0.5% max.
Undershoot At turn-off ..............................100 mV max.
Ripple and noise 5 Hz to 20 MHz........................ 20 mV.
.......................................................Vin=5 V, Vout=2.5 V
Transient response.......... 130 mV max. deviation 15 s recovery to within regulation band

  • Total Max Power: 50 W
  • Total Max Current: 10 A
  • Input Voltage: 3 V to 13.8 V
  • Output Voltage: 0.59 V to 5.1 V
  • Outputs: Single
  • Size (L x W x H): 0.650" x 0.410" x 0.520"
  • Warranty: 2 years
  • Operating Temperature: -40 to 85 oC
