LF3304

Features: · 100 MHz Data Rate for Video and other High-Speed Applications· One 24-bit, Two 12-bit, Three 8-bit Data Paths, or One Double Depth 12-bit· Dual Modes: Line Buffer or FIFO· User-Programmable FIFO Flags· User-Resettable Read and Write Pointers· Single 3.3 V Power Supply, 5 V Tolerant I/O...

product image

LF3304 Picture
See larger image
SeekIC No. : 004393741 Detail

LF3304: Features: · 100 MHz Data Rate for Video and other High-Speed Applications· One 24-bit, Two 12-bit, Three 8-bit Data Paths, or One Double Depth 12-bit· Dual Modes: Line Buffer or FIFO· User-Programma...

LF3304 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LF3304
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 100 MHz Data Rate for Video and other High-Speed Applications
· One 24-bit, Two 12-bit, Three 8-bit Data Paths, or One Double Depth 12-bit
· Dual Modes: Line Buffer or FIFO
· User-Programmable FIFO Flags
· User-Resettable Read and Write Pointers
· Single 3.3 V Power Supply, 5 V Tolerant I/O
· 100-lead PQFP


Pinout

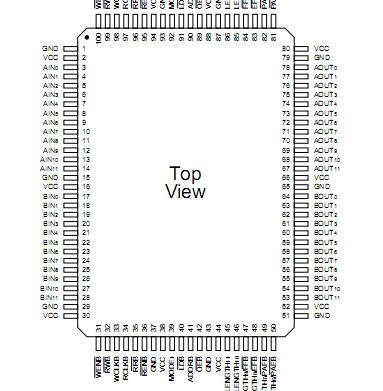

Connection Diagram


Specifications

Storage temperature .......................................................  65°C to +150°C
Operating ambient temperature ......................................  55°C to +125°C
VCC supply voltage with respect to ground ............................ 0.5 V to +4.5V
Input signal with respect to ground..........................................0.5 V to 5.5 V
Signal applied to high impedance output ................................. 0.5 V to 5.5 V
Output current into low outputs ............................................................. 25 mA
Latchup current ................................................................................  > 400 mA


Description

The LF3304 is a dual line buffer/FIFO, designed to operate at HDTV rates.  The LF3304 will operate in two distinct modes: Line Buffer and FIFO.  In these modes the two memo- ries can operate independently or with common control.

The LF3304 comprises two 12-bit 4K memories configurable in a variety of ways including: Two 12-bit 4K deep line buffers (independent lengths), Three 8-bit 4K deep line buffers (common lengths), One 12-bit 8K deep line buffer, or Two 12-bit 4K FIFOs (independent operation).In FIFO mode, independent Read and Write Resets give the designer control  over the internal pointers providing flexibility not commonly found in ordinary FIFOs.

The LF3304 operatates at a maximum data rate of 100 MHz and is available in a 100-lead PQFP package.
