Description: The LH1694 is a 256-output TFT-LCD gate driver IC.
- Table of contents:
LH1694
-
Suppliers
DataSheet
General Description
LH1694 General Description
The LH1694 is a 256-output TFT-LCD gate driver IC.
LH1694 Maximum Ratings
When connecting or disconnecting the power, this IC must be used within the range of the absolute maximum ratings.
LH1694 Features
` Number of LCD drive outputs : 256
` LCD drive output sequence :
Output shift direction can be selected
OG1OG256 or OG256OG1
` Enable chain connection
` Usable with both positive/negative power supplies
` Output signal masking function
` Input signal voltage : +2.7 to +3.6 V
` LCD drive voltage : +16.0 to +42.0 V
` Operating temperature : -30 to +85
` Package : 277-pin TCP (Tape Carrier Package)

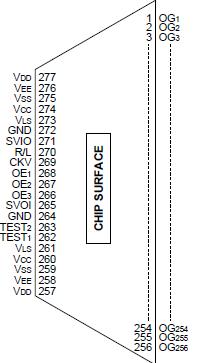

LH1694 Connection Diagram
