Purchase LH28F160S5-L, In-stock LH28F160S5-L From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH28F160S5-L
MFG: SHARP
D/C: 05+
Description: The LH28F160S5-L/S5H-L flash memories with Smart 5 technology are high-density, low-cost, nonvolatile,...
- Table of contents:
LH28F160S5-L
-
Suppliers
DataSheet
General Description
LH28F160S5-L General Description
The LH28F160S5-L/S5H-L flash memories with Smart 5 technology are high-density, low-cost, nonvolatile, read/write storage solution for a wide range of applications, having high programming performance is achieved through highly-optimized page buffer operations. Their symmetrically-blocked architecture, flexible voltage and enhanced cycling capability provide for highly flexible component suitable for resident flash arrays, SIMMs and memory cards.
Their enhanced suspend capabilities provide for an ideal solution for code + data storage applications. For secure code storage applications, such as networking, where code is either directly executed out of flash or downloaded to DRAM, the LH28F160S5-L/S5H-L offer three levels of protection : absolute protection with VPP at GND, selective hardware block locking, or flexible software block locking. These alternatives give designers ultimate control of their code security needs.
The LH28F160S5-L/S5H-L are conformed to the flash Scalable Command Set (SCS) and the Common Flash Interface (CFI) specification which enable universal and upgradable interface, enable the highest system/device data transfer rates and minimize device and system-level implementation costs.
LH28F160S5-L Features
• Smart 5 technology
5 V VCC
5 V VPP
• High speed write performance
Two 32-byte page buffers
2 µs/byte write transfer rate
• Common Flash Interface (CFI)
Universal & upgradable interface
• Scalable Command Set (SCS)
• High performance read access time
LH28F160S5-L70
70 ns (5.0±0.25 V)/80 ns (5.0±0.5 V)
LH28F160S5H-L70
70 ns (5.0±0.25 V)/90 ns (5.0±0.5 V)
LH28F160S5-L10/S5H-L10
100 ns (5.0±0.5 V)
• Enhanced automated suspend options
Write suspend to read
Block erase suspend to write
Block erase suspend to read
• Enhanced data protection features
Absolute protection with VPP = GND
Flexible block locking
Erase/write lockout during power transi
• SRAM-compatible write interface
• User-configurable x8 or x16 operation
• High-density symmetrically-blocked architec
Thirty-two 64 k-byte erasable blocks
• Enhanced cycling capability
100 000 block erase cycles
3.2 million block erase cycles/chip
• Low power management
Deep power-down mode
Automatic power saving mode decreases IC in static mode
• Automated write and erase
Command user interface
Status register
• ETOXTM∗ V nonvolatile flash technology
• Packages
56-pin TSOP Type I (TSOP056-P-1420) Normal bend/Reverse bend
56-pin SSOP (SSOP056-P-0600)H
[LH28F160S5-L]
64-ball CSP (FBGA064-P-0811)
64-pin SDIP (SDIP064-P-0750)H
*ETOX is a trademark of Intel Corporatio
*Under development
5 V VCC
5 V VPP
• High speed write performance
Two 32-byte page buffers
2 µs/byte write transfer rate
• Common Flash Interface (CFI)
Universal & upgradable interface
• Scalable Command Set (SCS)
• High performance read access time
LH28F160S5-L70
70 ns (5.0±0.25 V)/80 ns (5.0±0.5 V)
LH28F160S5H-L70
70 ns (5.0±0.25 V)/90 ns (5.0±0.5 V)
LH28F160S5-L10/S5H-L10
100 ns (5.0±0.5 V)
• Enhanced automated suspend options
Write suspend to read
Block erase suspend to write
Block erase suspend to read
• Enhanced data protection features
Absolute protection with VPP = GND
Flexible block locking
Erase/write lockout during power transi
• SRAM-compatible write interface
• User-configurable x8 or x16 operation
• High-density symmetrically-blocked architec
Thirty-two 64 k-byte erasable blocks
• Enhanced cycling capability
100 000 block erase cycles
3.2 million block erase cycles/chip
• Low power management
Deep power-down mode
Automatic power saving mode decreases IC in static mode
• Automated write and erase
Command user interface
Status register
• ETOXTM∗ V nonvolatile flash technology
• Packages
56-pin TSOP Type I (TSOP056-P-1420) Normal bend/Reverse bend
56-pin SSOP (SSOP056-P-0600)H
[LH28F160S5-L]
64-ball CSP (FBGA064-P-0811)
64-pin SDIP (SDIP064-P-0750)H
*ETOX is a trademark of Intel Corporatio
*Under development

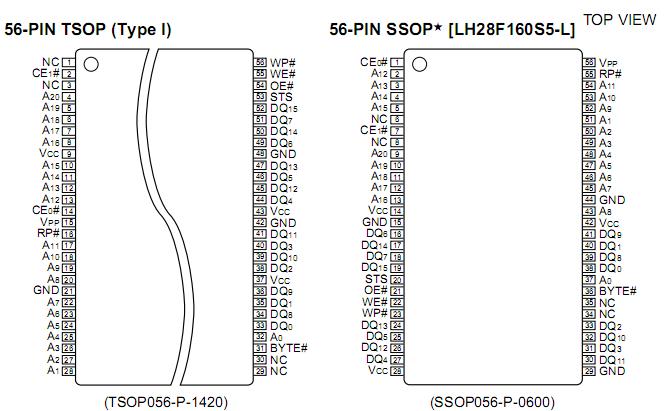

LH28F160S5-L Connection Diagram
