Purchase LH5164ASH, In-stock LH5164ASH From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH5164ASH
MFG: SHARP
D/C: 05+
Description: The LH5164ASH is a static RAM organized as 8,192×8 bits. It is fabricated using silicon-gate CMOS proc...
- Table of contents:
LH5164ASH
-
Suppliers
DataSheet
General Description
LH5164ASH General Description
The LH5164ASH is a static RAM organized as 8,192×8 bits. It is fabricated using silicon-gate CMOS process technology.
It is designed for 2.5 to 5.5 V low voltage operation and wide temperature range from -40 to +85°C.
LH5164ASH Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT | NOTE |
| Supply voltage | VCC | 0.3 to +7.0 | V | 1 |
| Input voltage | VIN | -0.3 to VCC + 0.3 | V | 1,2 |
| Operating temperature | Topr | -40 to +85 | ||
| Storage temperature | Tstg | 65 to +150 |
NOTES:
1. The maximum applicable voltage on any pin with respect to GND.
2. VIN (MIN.) = -3.0 V for pulse width 50 ns.
LH5164ASH Features
` 8,192*8 bit organization
` Access time: 500 ns (MAX.)
` Power consumption:
Operating:
60 mW (MAX.) @ 3 V
Standby:
3 mW (MAX.) @ 70 @ 3 V
9 mW (MAX.) @ 85 @ 3 V
` Fully-static operation
` Three-state outputs
` Wide operating voltage range: 2.5 V to 5.5 V
` TTL compatible I/O
` Wide temp. range tOPR: -40 to +85
` Packages:
28-pin, 450-mil SOP
28-pin, 8*13 mm2 TSOP (Type I)
` Access time: 500 ns (MAX.)
` Power consumption:
Operating:
60 mW (MAX.) @ 3 V
Standby:
3 mW (MAX.) @ 70 @ 3 V
9 mW (MAX.) @ 85 @ 3 V
` Fully-static operation
` Three-state outputs
` Wide operating voltage range: 2.5 V to 5.5 V
` TTL compatible I/O
` Wide temp. range tOPR: -40 to +85
` Packages:
28-pin, 450-mil SOP
28-pin, 8*13 mm2 TSOP (Type I)

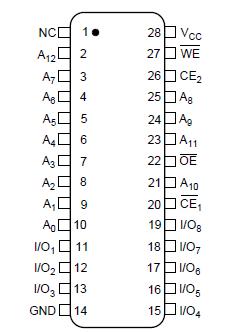

LH5164ASH Connection Diagram
LH5164ASH
