Part Number: LH5164AV
MFG: SHARP
D/C: 05+
Description: The LH5164AV is a static RAM organized as 8,192×8 bits. It is fabricated using silicon-gate CMOS proce...
- Table of contents:
LH5164AV
-
Suppliers
DataSheet
General Description
LH5164AV General Description
The LH5164AV is a static RAM organized as 8,192×8 bits. It is fabricated using silicon-gate CMOS process technology.
LH5164AV Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT | NOTE |
| Supply voltage | VCC | 0.3 to +7.0 | V | 1 |
| Input voltage | VIN | -0.3 to VCC + 0.3 | V | 1,2 |
| Operating temperature | Topr | -10 to +85 | ||
| Storage temperature | Tstg | 65 to +150 |
NOTES:
1. The maximum applicable voltage on any pin with respect to GND.
2. VIN (MIN.) = 3.0 V for pulse width 50 ns.
LH5164AV Features
` 8,192*8 bit organization
` Access time: 200 ns (MAX.)
` Supply current (MAX.):
Operating: 248 mW
55 mW (tRC, tWC = 1 ms)
Standby: 5.5 mW
Data retention:
0.6 mW (VCC = 3 V, tA = 25)
` Wide operating voltage range: 2.7 V to 5.5 V
` Fully-static operation
` TTL compatible I/O
` Three-state outputs
` Packages:
28-pin, 450-mil SOP
28-pin, 8*13 mm2 TSOP (Type I)
` Access time: 200 ns (MAX.)
` Supply current (MAX.):
Operating: 248 mW
55 mW (tRC, tWC = 1 ms)
Standby: 5.5 mW
Data retention:
0.6 mW (VCC = 3 V, tA = 25)
` Wide operating voltage range: 2.7 V to 5.5 V
` Fully-static operation
` TTL compatible I/O
` Three-state outputs
` Packages:
28-pin, 450-mil SOP
28-pin, 8*13 mm2 TSOP (Type I)

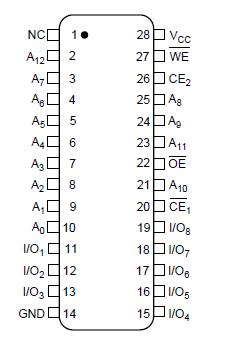

LH5164AV Connection Diagram
LH5164AV
PDF/DataSheet Download
- Datasheet: LH5164AV
- File Size: 87037 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
