Purchase LH5164AZ8, In-stock LH5164AZ8 From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH5164AZ8
MFG: SHARP
D/C: 05+
Description: The LH5164AZ8 is a static RAM organized as 8,192× 8 bits. It is fabricated using silicon-gate CMOS pro...
- Table of contents:
LH5164AZ8
-
Suppliers
DataSheet
General Description
LH5164AZ8 General Description
The LH5164AZ8 is a static RAM organized as 8,192× 8 bits. It is fabricated using silicon-gate CMOS process technology.
LH5164AZ8 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT | NOTE |
| Supply voltage | VCC | 0.3 to +7.0 | V | 1 |
| Input voltage | VIN | -0.3 to VCC + 0.3 | V | 1 |
| Operating temperature | Topr | -30 to +60 | ||
| Storage temperature | Tstg | 65 to +150 |
NOTE:
1. The maximum applicable voltage on any pin with respect to GND.
LH5164AZ8 Features
` 8,192 * 8 bit organization
` Access time:
200 ns (VCC = 3.0 V MAX.)
` Power consumption:
Operating:
60 mW (MAX.) @ 3 V
Standby (to 60):
3 mW (MAX.) @ 3 V
Data hold
0.6 mA (VCC = 3 V, TA = 60)
` Operating voltage range:
3.0 V to 3.6 V
` Wide operating temperature range:
-30 to 60
` Fully-static operation
` TTL compatible I/O
` Three-state outputs
` Package: 28-pin, 450-mil SOP

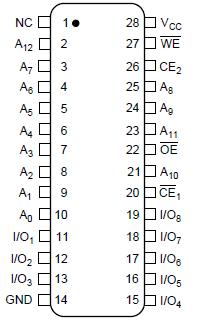

LH5164AZ8 Connection Diagram
