Purchase LH531V00, In-stock LH531V00 From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH531V00
MFG: SHARP
D/C: 05+
Description: The LH531V00 is a 1M-bit mask-programmable ROM organized as 131,072×8 bits. It is fabricated using sil...
- Table of contents:
LH531V00
-
Suppliers
DataSheet
General Description
LH531V00 General Description
The LH531V00 is a 1M-bit mask-programmable ROM organized as 131,072×8 bits. It is fabricated using silicon-gate CMOS process technology.
LH531V00 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT |
| Supply voltage | Vcc | 0.3 to +7.0 | V |
| Input voltage |
VIN | 0.3 to VCC + 0.3 | V |
| Output voltage |
VOUT |
0.3 to VCC + 0.3 |
V |
| Operating temperature | Topr | 0 to +70 |
|
| Storage temperature | Tstg | 65 to +150 |
LH531V00 Features
` 131,072 words*8 bit organization
` Access time: 100 ns (MAX.)
` Power consumption:
Operating: 275 mW (MAX.)
Standby: 550 W (MAX.)
` Mask-programmable OE1/OE1/DC
` Fully-static operation
` TTL-compatible I/O
` Three-state outputs
` Single +5 V power supply
` Packages:
32-pin, 600-mil DIP
32-pin, 525-mil SOP
32-pin, 8*20 mm2 TSOP (Type I)

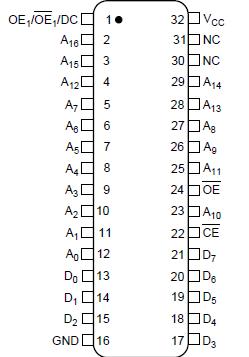

LH531V00 Connection Diagram
LH531V00
