Purchase LH532000B, In-stock LH532000B From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH532000B
MFG: SHARP
D/C: 05+
Description: The LH532000B is a 2M-bit mask-programmable ROM with two programmable memory organizations, byte and w...
- Table of contents:
LH532000B
-
Suppliers
DataSheet
General Description
LH532000B General Description
The LH532000B is a 2M-bit mask-programmable ROM with two programmable memory organizations, byte and word modes. It is fabricated using silicon-gate CMOS process technology.
LH532000B Maximum Ratings
| PARAMETER |
SYMBOL |
RATING |
UNIT |
| Supply voltage |
Vcc |
0.3 to +7.0 |
V |
| Input voltage |
VIN |
0.3 to VCC + 0.3 |
V |
| Output voltage |
VOUT |
0.3 to VCC + 0.3 |
V |
| Operating temperature |
Topr |
0 to +70 |
|
| Storage temperature |
Tstg |
65 to +150 |
LH532000B Features
` 262,144 words *8 bit organization
(Byte mode)
131,072 words *16 bit organization
(Word mode)
` BYTE input pin selects bit configuration
` Access times: 120/150 ns (MAX.)
` Low-power consumption:
Operating: 275 mW (MAX.)
Standby: 550 W (MAX.)
` Programmable OE/OE and OE1/OE/DC
` Static operation
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` Packages:
40-pin, 600-mil DIP
40-pin, 525-mil SOP
48-pin, 12 *18 mm2 TSOP (Type I)
`*16 word-wide pinout

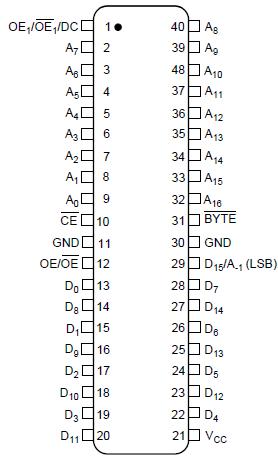

LH532000B Connection Diagram
LH532000B
