Purchase LH532100B-1, In-stock LH532100B-1 From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH532100B-1
MFG: SHARP
D/C: 05+
Description: The LH532100B-1 is a CMOS 2M-bit mask-programmable ROM organized as 262,144 ×8 bits. It is fabricated ...
- Table of contents:
LH532100B-1
-
Suppliers
DataSheet
General Description
LH532100B-1 General Description
The LH532100B-1 is a CMOS 2M-bit mask-programmable ROM organized as 262,144 ×8 bits. It is fabricated using silicon-gate process technology.
LH532100B-1 Maximum Ratings
| PARAMETER |
SYMBOL |
RATING |
UNIT |
| Supply voltage |
Vcc |
0.3 to +7.0 |
V |
| Input voltage |
VIN |
0.3 to VCC + 0.3 |
V |
| Output voltage |
VOUT |
0.3 to VCC + 0.3 |
V |
| Operating temperature |
Topr |
0 to +70 |
|
| Storage temperature |
Tstg |
65 to +150 |
LH532100B-1 Features
` 262,144 words* 8 bit organization
` Access time: 120 ns (MAX.)
` Static operation
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` Power consumption:
Operating: 275 mW (MAX.)
Standby: 550 W (MAX.)
` Mask-programmable control pin:
Pin 1 =
Pin 24 = OE/OE
` Packages:
32-pin, 600-mil DIP
32-pin, 525-mil SOP
32-pin, 450-mil QFJ (PLCC)
32-pin, 8*20 mm2 TSOP (Type I)
32-pin, 400-mil TSOP (Type II)
` Access time: 120 ns (MAX.)
` Static operation
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` Power consumption:
Operating: 275 mW (MAX.)
Standby: 550 W (MAX.)
` Mask-programmable control pin:
Pin 1 =
Pin 24 = OE/OE
` Packages:
32-pin, 600-mil DIP
32-pin, 525-mil SOP
32-pin, 450-mil QFJ (PLCC)
32-pin, 8*20 mm2 TSOP (Type I)
32-pin, 400-mil TSOP (Type II)

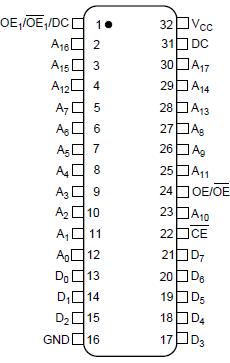

LH532100B-1 Connection Diagram
LH532100B-1
PDF/DataSheet Download
- Datasheet: LH532100B-1
- File Size: 81075 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
