Part Number: LH5324C00
MFG: SHARP
D/C: 05+
Description: The LH5324C00 is a 24M-bit mask-programmable ROM organized as 1,572,864×16 bits. It is fabricated usin...
- Table of contents:
LH5324C00
-
Suppliers
DataSheet
General Description
LH5324C00 General Description
The LH5324C00 is a 24M-bit mask-programmable ROM organized as 1,572,864×16 bits. It is fabricated using silicon-gate CMOS process technology.
LH5324C00 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT |
| Supply voltage | Vcc | 0.3 to +7.0 | V |
| Input voltage |
VIN | 0.3 to VCC + 0.3 | V |
| Output voltage |
VOUT |
0.3 to VCC + 0.3 |
V |
| Operating temperature | Topr | 0 to +70 |
|
| Storage temperature | Tstg | 65 to +150 |
LH5324C00 Features
` 1,572,864*16 bit organization
` Access time: 120 ns (MAX.)
` Supply current:
Operating: 80 mA (MAX.)
Standby: 100 A (MAX.)
` TTL compatible I/O
` Three-state output
` Single +5 V Power supply
` Static operation
` When the address input at both A19 and A20 is high level, outputs become high impedance irrespective of CE or OE.
` Package:
42-pin, 600-mil DIP
` Others:
Non programmable
Not designed or rated as radiation hardened
CMOS process (P type silicon substrate)

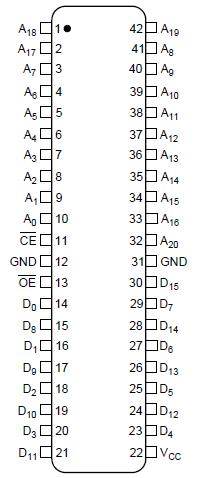

LH5324C00 Connection Diagram
