Purchase LH53259, In-stock LH53259 From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH53259
MFG: SHARP
D/C: 05+
Description: The LH53259 is a mask-programmable ROM organized as 32,768 ×8 bits. It is fabricated using silicon-gat...
- Table of contents:
LH53259
-
Suppliers
DataSheet
General Description
LH53259 General Description
The LH53259 is a mask-programmable ROM organized as 32,768 ×8 bits. It is fabricated using silicon-gate CMOS process technology.
LH53259 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT |
| Supply voltage | VCC | 0.3 to +7.0 | V |
LH53259 Features
· 32,768 words ×8 bit organization
· Access time: 150 ns (MAX.)
· Low-power consumption:
Operating: 137.5 mW (MAX.)
Standby: 550 mW (MAX.)
· Programmable output enable
· Static operation
· TTL compatible I/O
· Three-state outputs
· Single +5 V power supply
· Packages:
28-pin, 600-mil DIP
28-pin, 450-mil SOP
28-pin, 8×13.4 mm2 TSOP (Type I)
· JEDEC standard EPROM pinout (DIP)
· Access time: 150 ns (MAX.)
· Low-power consumption:
Operating: 137.5 mW (MAX.)
Standby: 550 mW (MAX.)
· Programmable output enable
· Static operation
· TTL compatible I/O
· Three-state outputs
· Single +5 V power supply
· Packages:
28-pin, 600-mil DIP
28-pin, 450-mil SOP
28-pin, 8×13.4 mm2 TSOP (Type I)
· JEDEC standard EPROM pinout (DIP)

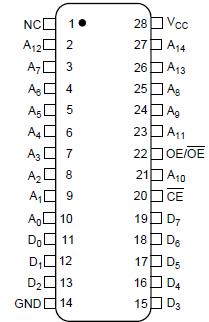

LH53259 Connection Diagram
LH53259
PDF/DataSheet Download
- Datasheet: LH53259
- File Size: 60894 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
