General Description
LH532600 General Description
The LH532600 is a 2M-bit mask-programmable ROM organized as 262,144 ×8 bits (Byte mode) or 131,072×16 bits (Word mode) that can be selected by BYTE input pin. It is fabricated using silicon-gate CMOS process technology.
LH532600 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT |
| Supply voltage | Vcc | 0.3 to +7.0 | V |
| Input voltage |
VIN | 0.3 to VCC + 0.3 | V |
| Output voltage |
VOUT |
0.3 to VCC + 0.3 |
V |
| Operating temperature | Topr | 0 to +70 |
|
| Storage temperature | Tstg | 65 to +150 |
LH532600 Features
` 262,144 words* 8 bit organization
(Byte mode)
131,072 words *16 bit organization
(Word mode)
` Access time: 100 ns (MAX.)
` Static operation
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` Power consumption:
Operating: 412.5 mW (MAX.)
Standby: 550 W (MAX.)
` Mask-programmable control pin:
Pin 1 =
` Packages:
40-pin, 600-mil DIP
40-pin, 525-mil SOP
48-pin, 10*20 mm2 TSOP (Type I)

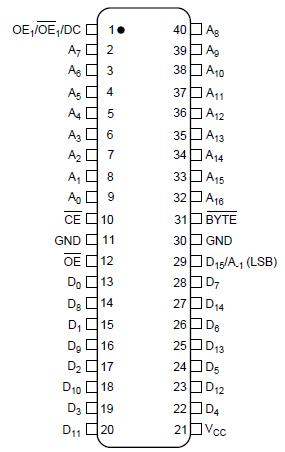

LH532600 Connection Diagram
LH532600
