Purchase LH5332600, In-stock LH5332600 From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH5332600
MFG: SHARP
D/C: 05+
Description: he LH5332600 is a 32M-bit mask-programmable ROM organized as 4,194,304×8 bits (Byte mode) or 2,097,152...
- Table of contents:
LH5332600
-
Suppliers
DataSheet
General Description
LH5332600 General Description
he LH5332600 is a 32M-bit mask-programmable ROM organized as 4,194,304×8 bits (Byte mode) or 2,097,152×16 bits (Word mode) that can be selected by a BYTE input pin. It is fabricated using silicon-gate CMOS process technology.
LH5332600 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT |
| Supply voltage | Vcc | 0.3 to +7.0 | V |
| Input voltage |
VIN | 0.3 to VCC + 0.3 | V |
| Output voltage |
VOUT |
0.3 to VCC + 0.3 |
V |
| Operating temperature | Topr | 0 to +70 |
|
| Storage temperature | Tstg | 65 to +150 |
LH5332600 Features
` 4,194,304*8 bit organization
(BYTE mode: BYTE = VIL)
2,097,152*16 bit organization
(Word mode: BYTE = VIH)
` Access time: 100 ns (MAX.)
` Supply current:
Operating: 100 mA (MAX.)
Standby: 100 mA (MAX.)
` TTL compatible I/O
` Three-state output
` Single +5 V power supply
` Static operation
` Packages:
44-pin, 600-mil SOP
48-pin, 12 mm*18 mm2 TSOP (Type I)
` Others:
Non programmable
Not designed or rated as radiation hardened
CMOS process (P type silicon substrate)

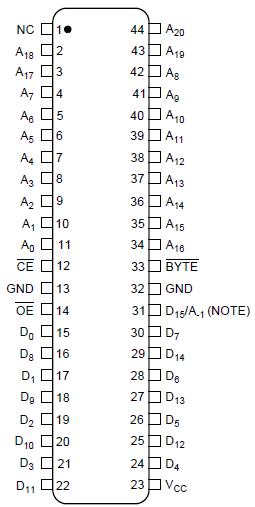

LH5332600 Connection Diagram
LH5332600
