Purchase LH534B00, In-stock LH534B00 From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH534B00
MFG: SHARP
D/C: 05+
Description: The LH534B00 is a 4M-bit mask-programmable ROM organized as 524,288×8 bits. It is fabricated using silicon-gate CMOS proc...
- Table of contents:
LH534B00
-
Suppliers
DataSheet
General Description
LH534B00 General Description
The LH534B00 is a 4M-bit mask-programmable ROM organized as 524,288×8 bits. It is fabricated using silicon-gate CMOS process technology.
LH534B00 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT |
| Supply voltage | Vcc | 0.3 to +7.0 | V |
| Input voltage |
VIN | 0.3 to VCC + 0.3 | V |
| Output voltage |
VOUT |
0.3 to VCC + 0.3 |
V |
| Operating temperature | Topr | -20 to +70 |
|
| Storage temperature | Tstg | 65 to +150 |
LH534B00 Features
` 524,288 words*8 bit organization
` Access time: 120 ns (MAX.)
` Power consumption:
Operating: 330 mW (MAX.)
Standby: 550 W (MAX.)
` Static operation
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` Package:
40-pin, 10*20 mm2 TSOP (Type I)

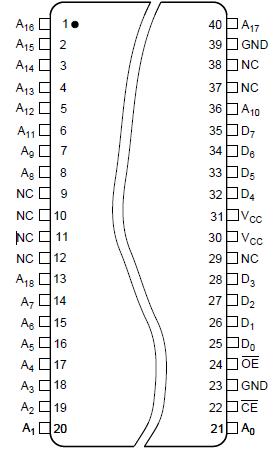

LH534B00 Connection Diagram
