Product Details

Description

Features:

` 1,048,576 words *8 bit organization
` Access time: 100 ns (MAX.)
` Power consumption:
    Operating: 550 mW (MAX.)
    Standby: 550 W (MAX.)
` Static operation
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` Packages:
    32-pin, 600-mil DIP
    32-pin, 525-mil SOP
    32-pin, 400-mil TSOP (Type II)

Pinout

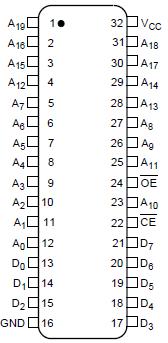

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATING	UNIT
Supply voltage	V_CC	0.3 to +7.0	V
Input voltage	V_IN	0.3 to V_CC +0.3	V
Output voltage	V_OUT	0.3 to V_CC+0.3	V
Operating temperature	T_opr	0 to +70
Storage temperature	T_stg	65 to +150

Description

The LH538700A is an 8M-bit mask-programmable ROM organized as 1,048,576 ´ 8 bits. It is fabricated using silicon-gate CMOS process technology.
