Description: The LH53B16R00 is a 16M-bit CMOS mask ROM (mask-programmable-read-only memory) organized as 1,048,576 ...
- Table of contents:
LH53B16R00
-
Suppliers
DataSheet
General Description
LH53B16R00 General Description
The LH53B16R00 is a 16M-bit CMOS mask ROM (mask-programmable-read-only memory) organized as 1,048,576 ×16 bits (Word mode) or 524,288×32 bits (Double Word mode). It is fabricated using silicon-gate CMOS process technology.
LH53B16R00 Maximum Ratings
| PARAMETER |
SYMBOL |
RATING |
UNIT |
| Supply voltage |
Vcc |
0.3 to +7.0 |
V |
| Input voltage |
VIN |
0.3 to VCC + 0.3 |
V |
| Output voltage |
VOUT |
0.3 to VCC + 0.3 |
V |
| Operating temperature |
Topr |
0 to +70 |
|
| Storage temperature |
Tstg |
65 to +150 |
LH53B16R00 Features
` 1,048,576*16 bit organization
(Word mode: W = VIL)
524,288*32 bit organization
(Double Word mode: W = VIH)
` Access time: 120 ns (MAX.)
Access time in page mode: 50 ns (MAX.)
` Supply current:
Operating: 180 mA (MAX.)
Standby: 300 A (MAX.)
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` Static operation
` Package:
70-pin, 500-mil SSOP
` Others:
Non programmable
Not designed or rated as radiation
hardened
CMOS process (P type silicon substrate)

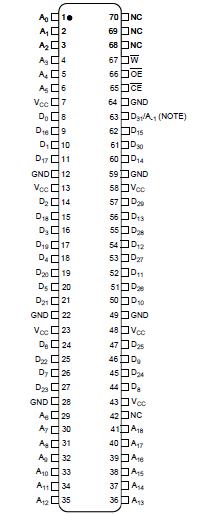

LH53B16R00 Connection Diagram
NOTE: D31/A-1 pin becomes LSB address input (A-1) when the W pin is set to be LOW in word mode, and data output
(D31) when set to be HIGH in double word mode.
LH53B16R00
PDF/DataSheet Download
- Datasheet: LH53B16R00
- File Size: 58865 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
