LHC4913

Features: ` LOW OUTPUT CAPACITANCE: 1F` LOW DROP VOLTAGE: 0.5V @ IO=1A 1.5V @ IO=3A` OVERTEMPERATURE PROTECTION` OVERCURRENT PROTECTION` OUTPUT SHORT CIRCUIT MONITORING, SIGNALLED BY TTL OUTPUT` ON/OFF EXTERNAL CONTROL BY MEANS OF TTL COMPATIBLE INPUT` ADJUSTABLE CURRENT LIMITATION PROTECTS OUTPUT...

product image

LHC4913 Picture
See larger image
SeekIC No. : 004394250 Detail

LHC4913: Features: ` LOW OUTPUT CAPACITANCE: 1F` LOW DROP VOLTAGE: 0.5V @ IO=1A 1.5V @ IO=3A` OVERTEMPERATURE PROTECTION` OVERCURRENT PROTECTION` OUTPUT SHORT CIRCUIT MONITORING, SIGNALLED BY TTL OUTPUT` ON/...

LHC4913 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LHC4913
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` LOW OUTPUT CAPACITANCE: 1F
` LOW DROP VOLTAGE:
    0.5V @ IO=1A
    1.5V @ IO=3A
` OVERTEMPERATURE PROTECTION
` OVERCURRENT PROTECTION
` OUTPUT SHORT CIRCUIT MONITORING, SIGNALLED BY TTL OUTPUT
` ON/OFF EXTERNAL CONTROL BY MEANS OF TTL COMPATIBLE INPUT
` ADJUSTABLE CURRENT LIMITATION PROTECTS OUTPUTS FROM DAMAGING SHORTCIRCUITS
` REMOTE SENSING OPERATION




Pinout

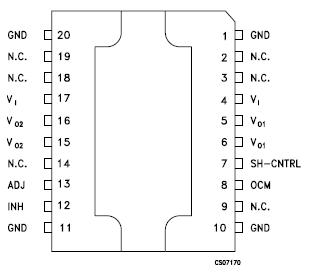

Connection Diagram


Specifications

Symbol Parameter Value Unit
VI DC Input Voltage 14 V
VINH INHIBIT Input Voltage VI + 0.5 V
IO Output Current Internally limited
Ptot Power Dissipation Internally limited
Tstg Storage Temperature Range -40 to +150
Top Operating Junction Temperature Range -40 to +125



Description

The LHC4913 is a positive Voltage Regulator family including both fixed and adjustable versions. Housed into SO-20 slug-up package with stand off zero, it is specifically intended for applications in rugged environments, such as Nuclear Physics, in which it has to withstand large amounts of radiation doses during operating life. The fixed output voltages available are 2.5, 3.0, 3.3, 5.0 and 8.0V. Input voltage ranges from 3 to 12V.
