LIS2L02AS4

Output Type :
Digital Output - Number of Bits :
Supply Voltage - Max :
Supply Voltage - Min :
Supply Current :
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Packaging : Tube
Sensing Axis : X, Y
Acceleration : 2 g, 6 g
Sensitivity : 500 mV/g, 15000 mV/g
Package / Case : SOIC-24


Features:

2.4V TO 5.25V SINGLE SUPPLY OPERATION
LOW POWER CONSUMPTION
±2g/±6g USER SELECTABLE FULL-SCALE
0.3mg RESOLUTION OVER 100Hz BANDWIDTH
EMBEDDED SELF TEST AND POWER DOWN
OUTPUT VOLTAGE, OFFSET AND SENSITIVITY RATIOMETRIC TO THE SUPPLY VOLTAGE
HIGH SHOCK SURVIVABILITY
LEAD FREE AND ECOPACK COMPATIBLE

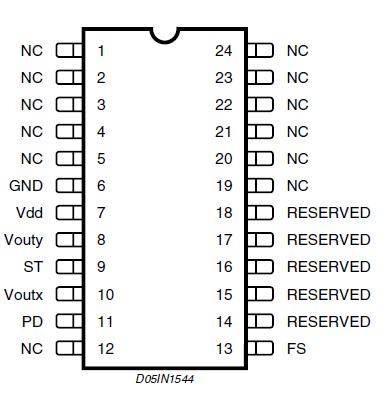

Pinout




Specifications

Symbol	Ratings	Maximum Value	Unit
Vdd	Supply Voltage	-0.3 to 7	V
Vin	Input Voltage on any control pin (FS, PD, ST)	-0.3 to Vdd +0.3	V
APOW	Acceleration (Any axis, Powered, Vdd=3.3V)	3000g for 0.5 ms
		10000g for 0.1 ms
AUNP	Acceleration (Any axis, Not powered)	3000g for 0.5 ms
		10000g for 0.1 ms
TSTG	Storage Temperature Range	-40 to +125
ESD	Electrostatic Discharge Protection	2 (HBM)	kV
		200 (MM)	V
		1500 (CDM)	V

Description

The LIS2L02AS4 is a low-power two axes linear accelerometer that includes a sensing element and an IC interface able to take the information from the sensing element and to provide an analog signal to the external world.

The sensing element, capable of detecting the acceleration, is manufactured using a dedicated process developed by ST to produce inertial sensors and actuators in silicon.

The IC interface is manufactured using a standard CMOS process that allows high level of integration  to design a dedicated circuit which is trimmed to better match the sensing element characteristics.

The LIS2L02AS4 has a user selectable full scale of ±2g, ±6g and it is capable of measuring accelerations over a bandwidth of 1.5kHz for all axes. The device bandwidth may be reduced by using external capacitances. A self-test capability allows to check the mechanical and electrical signal path of the sensor.

The LIS2L02AS4 is available in plastic SMD package and it is specified over an extended temperature range of -40°C to +85°C.

The LIS2L02AS4 belongs to a family of products suitable for a variety of applications:
Mobile terminals
Gaming and Virtual Reality input devices
Free-fall detection for data protection
Antitheft systems and Inertial Navigation
Appliance and Robotics
