LIS2L06AL

Output Type :
Digital Output - Number of Bits :
Supply Voltage - Max :
Supply Voltage - Min :
Supply Current :
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Packaging : Tray
Sensing Axis : X, Y
Acceleration : 2 g, 6 g
Sensitivity : 500 mV/g, 15000 mV/g
Package / Case : LGA-8


Features:

·2.4V TO 5.25V SINGLE SUPPLY OPERATION
· LOW POWER CONSUMPTION
· ±2g/±6g USER SELECTABLE FULL-SC
· 0.3mg RESOLUTION OVER 100Hz BANDWIDTH
· EMBEDDED SELF TEST
· OUTPUT VOLTAGE, OFFSET AND SENSITIVITY RATIOMETRIC TO THE SUPPLY VOLTAGE
· HIGH SHOCK SURVIVABILITY
· ECO-PACK COMPLIANT

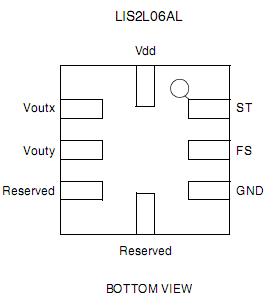

Pinout




Specifications

Stresses above those listed as "absolute maximum ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Symbol	Ratings	Maximum Value	Unit
Vdd	Supply voltage	-0.3 to 7	V
Vin	Input Voltage on Any Control pin (FS, PD, ST)	-0.3 to Vdd +0.3	V
APOW	Acceleration (Any axis, Powered, Vdd=3.3V)	3000g for 0.5 ms
		10000g for 0.1 ms
AUNP	Acceleration (Any axis, Not powered)	3000g for 0.5 ms
		10000g for 0.1 ms
TSTG	Storage Temperature Range	-40 to +125
ESD	Electrostatic Discharge Protection	2KV HBM
		200V MM
		1500V CDM

Description

The LIS2L06AL is a low-power 2-axis linear capacitive accelerometer that includes a sensing element and an IC interface able to take the information from the sensing element and to provide an analog signal to the external world.

The sensing element, capable of detecting the acceleration, is manufactured using a dedicated process developed by ST to produce inertial sensors and actuators in silicon.

The IC interface is manufactured using a standard CMOS process that allows high level of integration to design a dedicated circuit which is trimmed to better match the sensing element characteristics.

The LIS2L06AL has a dynamically selectable full scale of ±2g/±6g and it is capable of measuring accelerations over a bandwidth of 2.0 kHz for all axes. The device bandwidth may be reduced by using external capacitances. A self-test capability allows to check the mechanical and electrical signal path of the sensor.

The LIS2L06AL is available in plastic SMD package and it is guaranteed to operate over an extended temperature range of -40°C to +85°C. The LIS2L06AL belongs to a family of products suitable for a variety of applications:
    Mobile terminals
    Gaming and Virtual Reality input devices
    Free-fall detection for data protection
    Antitheft systems and Inertial Navigation
    Appliance and Robotics.

Parameters:

Technical/Catalog Information	LIS2L06AL
Vendor	STMicroelectronics
Category	Sensors, Transducers
Acceleration Range	±2g, 6g
Voltage Rating	2.7 ~ 5.0VDC
Sensitivity	220/660mV/g
Features	High Shock Survivability
Package / Case	8-LGA
Axis	Two
Interface	Analog
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LIS2L06AL LIS2L06AL 497 4916 ND 4974916ND 497-4916
