LIS3L02AQ

Digital Output - Number of Bits :
Sensing Axis : X, Y, Z
Supply Voltage - Max : 3.6 V
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Packaging : Tray
Supply Voltage - Min : 2.4 V
Output Type : Analog - Voltage
Acceleration : 2 g, 6 g
Sensitivity : 500 mV/g, 15000 mV/g
Package / Case : QFPN-44
Supply Current : 0.85 mA


Features:

·2.4V TO 3.6V SINGLE SUPPLY OPERATION
· 0.5mg RESOLUTION OVER 100Hz BW
· 2g/6g USER SELECTABLE FULL-SCALE
· OUTPUT VOLTAGE, OFFSET AND SENSITIVITY RATIOMETRIC TO THE SUPPLY VOLTAGE
· FACTORY TRIMMED DEVICE SENSITIVITY AND OFFSET
· EMBEDDED SELF TEST
· HIGH SHOCK SURVIVABILITY

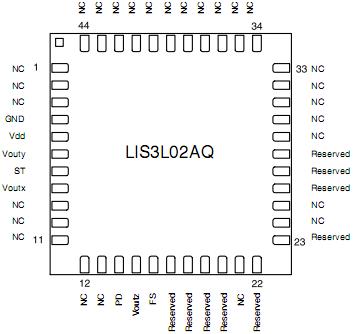

Pinout




Specifications

Stresses above those listed as "absolute maximum ratings" may cause permanent damage to the device. This
s a stress rating only and functional operation of the device under these conditions is not implied. Exposure to
maximum rating conditions for extended periods may affect device reliability.

Symbol	Ratings	Maximum Value	Unit
Vdd	Supply voltage	-0.3 to 7	V
Vin	Input Voltage on Any Control pin (FS, PD, ST)	-0.3 to Vdd +0.3	V
APOW	Acceleration (Any axis, Powered, Vdd=3.3V)	3000g for 0.5 ms
		10000g for 0.1 ms
AUNP	Acceleration (Any axis, Not powered)	3000g for 0.5 ms
		10000g for 0.1 ms
TSTG	Storage Temperature Range	-40 to +85
ESD	Electrostatic Discharge Protection	-40 to +105
		2KV HBM

Description

The LIS3L02AQ is a low-power three-axis linear ac- celerometer that includes a sensing element and an IC interface able to take the information from the sensing element and to provide an analog signal to the external world.

The sensing element, capable to detect the acceler- ation, is manufactured using a dedicated process called THELMA (Thick Epi-Poly Layer for Microactu- ators and Accelerometers) developed by ST to pro- duce inertial sensors and actuators in silicon.

The IC interface instead is manufactured using a CMOS process that allows high level of integration to design a dedicated circuit which is trimmed to better match the sensing element characteristics.

The LIS3L02AQ has a user selectable full scale of 2g, 6g and it is capable of measuring accelerations over a maximum bandwidth of 4.0 KHz for the X and Y axis and 2.5KHz for the Z axis. The device band- width may be reduced by using external capacitanc- es. A self-test capability allows the user to check the functioning of the system.

The LIS3L02AQ is available in plastic SMD package and it is specified over a temperature range extend- ing from -40 to +85. The LIS3L02AQ belongs to a family of products suit- able for a variety of applications:

Motion activated functions in mobile terminals
Gaming and Virtual Reality input devices
Free-fall detection and Data protection
Antitheft systems and Inertial Navigation
Appliance Control and Robotics

Parameters:

Technical/Catalog Information	LIS3L02AQ
Vendor	STMicroelectronics
Category	Sensors, Transducers
Acceleration Range	±2g, 6g
Voltage Rating	3.3V
Sensitivity	220/660mV/g
Features	High Shock Survivability
Package / Case	44-QFN
Axis	Three
Interface	Analog
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LIS3L02AQ LIS3L02AQ 497 4026 ND 4974026ND 497-4026
