Purchase LM1295, In-stock LM1295 From SeekIC.
MFG:NSC D/C:DIP
Part Number: LM1295
MFG: NSC
D/C: DIP
Description: The LM1295 is specifically designed for use in a continuous sync monitor. The injection-locked vertica...
- Table of contents:
LM1295
-
Suppliers
DataSheet
General Description
LM1295 General Description
The LM1295 is specifically designed for use in a continuous sync monitor. The injection-locked vertical oscillator operates from 50 Hz to 170 Hz, covering all known video monitors. A differential output current is provided in order to prevent ground interaction.
The IC provides two outputs composed of the summation of DC controlled 1st and 2nd order output terms. The first output corrects for EW pincushion and trapezoid. The second corrects for parallelogram and bow.
A DC controlled output is provided for vertical dynamic focus correction.
The IC is packaged in a 24-pin narrow DIP package and operates on a single 12V power supply.
LM1295 Maximum Ratings
Supply Voltage 15V
Input Voltage (DC, pins 2, 4, 6, 10, 11, 12, 13, 15) 5V
Input Voltage (AC, Pin 4) 5 VPP
Power Dissipation (Note 4)
(Above 25 Derate Based on JA and TJ) 1.8W
Thermal Resistance (JA) 70/W
Junction Temperature (TJ) 150
ESD Susceptibility (Note 5) 1.8 kV
Storage Temperature -65 to +150
Lead Temperature (Soldering, 10 sec.) 265
Input Voltage (DC, pins 2, 4, 6, 10, 11, 12, 13, 15) 5V
Input Voltage (AC, Pin 4) 5 VPP
Power Dissipation (Note 4)
(Above 25 Derate Based on JA and TJ) 1.8W
Thermal Resistance (JA) 70/W
Junction Temperature (TJ) 150
ESD Susceptibility (Note 5) 1.8 kV
Storage Temperature -65 to +150
Lead Temperature (Soldering, 10 sec.) 265
LM1295 Features
Vertical scanning frequency 50 Hz±170 Hz
DC controlled correction term amplitudes
Up to 125 kHz bandwidth for dynamic input signals
Minimum external parts count
Multiple IC connection for convergence applications flexibility
Stable vertical amplitude over temperature
Compatible with the LM1291 Horizontal PLL in a H/V system
Dynamic vertical deflection correction for second anode high voltage drop
Both positive and negative going correction signals
DC controlled correction term amplitudes
Up to 125 kHz bandwidth for dynamic input signals
Minimum external parts count
Multiple IC connection for convergence applications flexibility
Stable vertical amplitude over temperature
Compatible with the LM1291 Horizontal PLL in a H/V system
Dynamic vertical deflection correction for second anode high voltage drop
Both positive and negative going correction signals

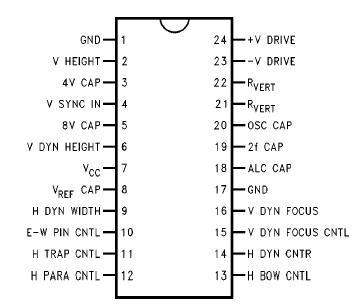

LM1295 Connection Diagram
LM1295
