Part Number: LM136-5.0
Description: The LM136-5.0/LM236-5.0/LM336-5.0 integrated circuits areprecision 5.0V shunt regulator diodes. These ...
- Table of contents:
LM136-5.0
-
Suppliers
DataSheet
General Description
LM136-5.0 General Description
The LM136-5.0/LM236-5.0/LM336-5.0 integrated circuits areprecision 5.0V shunt regulator diodes. These monolithic IC
voltage references operate as a low temperature coefficient5.0V zener with 0.6W dynamic impedance. A third terminal
on the LM136-5.0 allows the reference voltage and temperaturecoefficient to be trimmed easily.
The LM136-5.0 series is useful as a precision 5.0V low voltagereference for digital voltmeters, power supplies or opamp circuitry. The 5.0V makes it convenient to obtain astable reference from low voltage supplies. Further, sincethe LM136-5.0 operates as a shunt regulator, it can be usedas either a positive or negative voltage reference.
The LM136-5.0 is rated for operation over −55 to +125while the LM236-5.0 is rated over a −25 to +85temperaturerange. The LM336-5.0 is rated for operation over a0 to +70temperature range. See the connection diagramsfor available packages. For applications requiring2.5V see LM136-2.5.
LM136-5.0 Maximum Ratings
Reverse Current 15mA
Forward Current 10mA
Storage Temperature −60to +150
Operating Temperature Range (Note 2)
LM136-5.0 −55 to +150
LM236-5.0 −25 to +85
LM336-5.0 0 to +70
Soldering Information
TO-92 Package (10 sec.) 260
TO-46 Package (10 sec.) 300
SO Package
Vapor Phase (60 sec.) 215
Infrared (15 sec.) 220
Forward Current 10mA
Storage Temperature −60to +150
Operating Temperature Range (Note 2)
LM136-5.0 −55 to +150
LM236-5.0 −25 to +85
LM336-5.0 0 to +70
Soldering Information
TO-92 Package (10 sec.) 260
TO-46 Package (10 sec.) 300
SO Package
Vapor Phase (60 sec.) 215
Infrared (15 sec.) 220
LM136-5.0 Features
Adjustable 4V to 6V
Low temperature coefficient
Wide operating current of 600 µA to 10 mA
0.6W dynamic impedance
± 1% initial tolerance available
Guaranteed temperature stability
Easily trimmed for minimum temperature drift
Fast turn-on
Three lead transistor package
Low temperature coefficient
Wide operating current of 600 µA to 10 mA
0.6W dynamic impedance
± 1% initial tolerance available
Guaranteed temperature stability
Easily trimmed for minimum temperature drift
Fast turn-on
Three lead transistor package
LM136-5.0
PDF/DataSheet Download
- Datasheet: LM136-5.0
- File Size: 267491 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·LM10
- LINER [Linear Technology]
- Low Power Op Amp and Reference
- 805461 KB
- ·LM1001-7R
- POWER-ONE [Power-One]
- 50 Watt AC-DC Converters
- 150434 KB
- ·LM101
- NSC [National Semiconductor]
- Operational Amplifiers
- 521472 KB
- ·LM101A
- LINER [Linear Technology]
- Operational Amplifiers
- 521472 KB
- ·LM101AD
- STMICROELECTRONICS [STMicroelectronics]
- SINGLE OPERATIONAL AMPLIFIER
- 73655 KB
- ·LM101AFK
- TI [Texas Instruments]
- HIGH-PERFORMANCE OPERATIONAL AMPLIFIERS
- 73655 KB
- ·LM101AH
- LINER [Linear Technology]
- Operational Amplifiers
- 397624 KB
- ·LM101AH/883
- NSC [National Semiconductor]
- Operational Amplifiers
- 521472 KB
LM136-5.0 Relative Products
LM136-2.5
The LM136-2.5/LM236-2.5 and LM336-2.5 integrated cir-cuits are precision 2.5V shunt regulator diodes. These monolithic IC voltage references operate as a low-temperature-coefficient 2.5V zener with 0.2 dynamic impedance.Athird terminal on the LM136-2.5 allow...
LM13600
The LM13600 series consists of two current controlled transconductance amplifiers each with differential inputs and a push-pull output. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the input...
LM135Z
IC TEMP SENSOR PREC TO-92

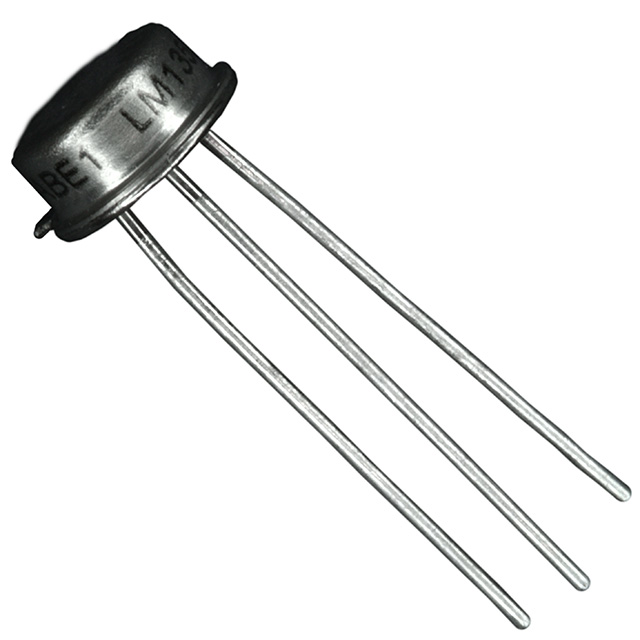

LM135H/NOPB
