MFG:NSC Package Cooled:DIP-16 D/C:07+
MFG: NSC
Package Cooled: DIP-16
D/C: 07+
Description: The LM13600 series consists of two current controlled transconductance amplifiers each with differenti...

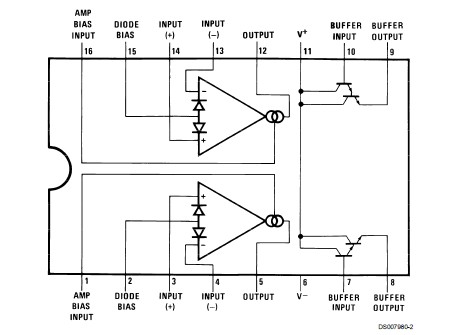

The LM13600 series consists of two current controlled transconductance amplifiers each with differential inputs and a push-pull output. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10 dB signal-to-noise improvement referenced to 0.5 percent THD. Controlled impedance buffers which are especially designed to complement the dynamic range of the amplifiers are provided.
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage (Note 2)
LM13600 ...........................................36 VDC or ±18V
LM13600A .........................................44 VDC or ±22V
Power Dissipation (Note 3) TA = 25°C .........570 mW
Differential Input Voltage ....................................±5V
Diode Bias Current (ID) .......................................2mA
Amplifier Bias Current (IABC) ...............................2mA
Output Short Circuit Duration................... Continuous
Buffer Output Current (Note 4)......................... 20 mA
Operating Temperature Range ...........0°C to +70°C
DC Input Voltage +VS to −VS
Storage Temperature Range ........−65°C to +150°C
Soldering Information
Dual-In-Line Package
Soldering (10 seconds) ...................................260°C
Small Outline Package
Vapor Phase (60 seconds).............................. 215°C
Infrared (15 seconds) .....................................220°C
See AN-450 "Surface Mounting Methods and Their Effect on Product Reliability" for other methods of soldering surface mount devices.
LM13600
PDF/DataSheet Download
