Purchase LM139, In-stock LM139 From SeekIC.
MFG:NS
Part Number: LM139
MFG: NS
Description: The LM139 series consists of four independent precision voltage comparators with an offset voltage specification as low...
- Table of contents:
LM139
-
Suppliers
DataSheet
General Description
LM139 General Description
The LM139 series consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV max for all four comparators. These were de- signed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteris- ic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.
LM139 Maximum Ratings
Supply Voltage, V+ 36 VDC or ±18 VDC 28 VDC or ±14 VDC
Differential Input Voltage (Note 11) 36 VDC 28 VDC
Input Voltage −0.3 VDC to +36 VDC −0.3 VDC to +28 VDC
Input Current (VIN<−0.3 VDC), (Note 6) 50 mA 50 mA
Power Dissipation (Note 4) Molded DIP 1050 mW 1050 mW
Cavity DIP 1190 mW Small Outline Package 760 mW
Output Short-Circuit to GND, (Note 5) Continuous Continuous
Storage Temperature Range −65˚C to +150˚C −65˚C to +150˚C
Lead Temperature (Soldering, 10 seconds) 260˚C 260˚C
Operating Temperature Range −40˚C to +85˚C
LM339/LM339A 0˚C to +70˚C
LM239/LM239A −25˚C to +85˚C
LM2901 −40˚C to +85˚C
LM139/LM139A −55˚C to +125˚C
Soldering Information Dual-In-Line Package
Soldering (10 seconds) 260˚C 260˚C
Small Outline Package
Vapor Phase (60 seconds) 215˚C 215˚C
Infrared (15 seconds) 220˚C 220˚C
See AN-450 "Surface Mounting Methods and Their Effect on Product Reliability" for other methods of soldering surface mount devices.
ESD rating (1.5 kΩ in series with 100 pF) 600V 600V
Differential Input Voltage (Note 11) 36 VDC 28 VDC
Input Voltage −0.3 VDC to +36 VDC −0.3 VDC to +28 VDC
Input Current (VIN<−0.3 VDC), (Note 6) 50 mA 50 mA
Power Dissipation (Note 4) Molded DIP 1050 mW 1050 mW
Cavity DIP 1190 mW Small Outline Package 760 mW
Output Short-Circuit to GND, (Note 5) Continuous Continuous
Storage Temperature Range −65˚C to +150˚C −65˚C to +150˚C
Lead Temperature (Soldering, 10 seconds) 260˚C 260˚C
Operating Temperature Range −40˚C to +85˚C
LM339/LM339A 0˚C to +70˚C
LM239/LM239A −25˚C to +85˚C
LM2901 −40˚C to +85˚C
LM139/LM139A −55˚C to +125˚C
Soldering Information Dual-In-Line Package
Soldering (10 seconds) 260˚C 260˚C
Small Outline Package
Vapor Phase (60 seconds) 215˚C 215˚C
Infrared (15 seconds) 220˚C 220˚C
See AN-450 "Surface Mounting Methods and Their Effect on Product Reliability" for other methods of soldering surface mount devices.
ESD rating (1.5 kΩ in series with 100 pF) 600V 600V
LM139 Features
Wide supply voltage range
- LM139/139A Series 2 to 36 VDC or ±1to ±18 VDC
- LM2901: 2 to 36 VDC or ±1to ±18 VDC
- LM3302: 2 to 28 VDC or ±1to ±14 VDC
Very low supply current drain (0.8 mA) - independent of supply voltage
Low input biasing current: 25 nA
Low input offset current: ±5nA
Offset voltage: ±3mV
Input common-mode voltage range includes GND
Differential input voltage range equal to the power supply voltage
Low output saturation voltage: 250 mV at 4 mA
Output voltage compatible with TTL, DTL, ECL, MOS andCMOS logic systems
- LM139/139A Series 2 to 36 VDC or ±1to ±18 VDC
- LM2901: 2 to 36 VDC or ±1to ±18 VDC
- LM3302: 2 to 28 VDC or ±1to ±14 VDC
Very low supply current drain (0.8 mA) - independent of supply voltage
Low input biasing current: 25 nA
Low input offset current: ±5nA
Offset voltage: ±3mV
Input common-mode voltage range includes GND
Differential input voltage range equal to the power supply voltage
Low output saturation voltage: 250 mV at 4 mA
Output voltage compatible with TTL, DTL, ECL, MOS andCMOS logic systems
LM139 Typical Application
High precision comparators
Reduced VOS drift over temperature
Eliminates need for dual supplies
Allows sensing near GND
Compatible with all forms of logic
Power drain suitable for battery operation
Reduced VOS drift over temperature
Eliminates need for dual supplies
Allows sensing near GND
Compatible with all forms of logic
Power drain suitable for battery operation

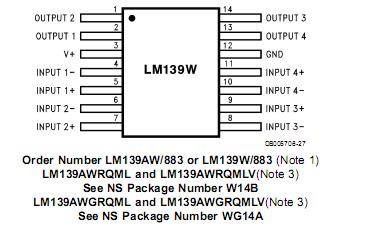

LM139 Connection Diagram
LM139
