Part Number: LM139,A
Description: These devices consist of four independent precision voltage comparators with an offset voltage specifi...
- Table of contents:
LM139,A
-
Suppliers
DataSheet
General Description
LM139,A General Description
These devices consist of four independent precision voltage comparators with an offset voltage specifications as low as 2mV max for LM339A,LM239A and LM139A. All these comparators were designed specifically to operate from a single power supply aver a wide range of voltages.Operation from split power supplies is also possible.
These comparators also have a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.

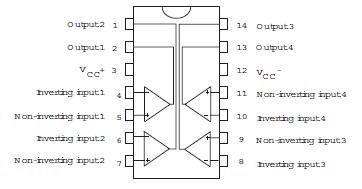

LM139,A Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Supply voltage |
±18 or 36 |
V |
|
Vid |
Differential Input Voltage |
±36 |
V |
|
Vi |
Input Voltage |
-0.3 to +36 |
V |
| Output Short-circuit to Ground - note 1) |
Infinite |
||
|
Pd |
Power Dissipation 2) DIP14 SO14 TSSOP14 |
1500 830 710 |
mW |
|
Tstg |
Storage Temperature Range |
-65 to +150 |
°C |
|
Tj |
Junction Temperature |
+150 |
°C |
1. Short-circuits from the output to VCC+ can cause excessive heating and eventual destruction. The maximum output current is approximately 20mAindependent of the magnitude of VCC+
2. Pd is calculated with Tamb = +25°C, Tj = +150°C and Rthja = 80°C/W for DIP14 package
= 150°C/W for SO14 package
= 175°C/W for TSSOP14 package
LM139,A Features
· WIDE SINGLE SUPPLY VOLTAGE RANGE OR DUAL SUPPLIES FOR ALL DEVICES :+2V TO +36V OR ±1V TO ±18V
· VERY LOW SUPPLY CURRENT (1.1mA) INDEPENDENT OF SUPPLY VOLTAGE (1.4mW/comparator at +5V)
· LOW INPUT BIAS CURRENT : 25nA TYP
· LOW INPUT OFFSET CURRENT : ±5nA TYP
· LOW INPUT OFFSET VOLTAGE : ±1mV TYP
· INPUT COMMON-MODE VOLTAGE RANGE INCLUDES GROUND
· LOW OUTPUT SATURATION VOLTAGE :250mV TYP; (Io = 4mA)
· DIFFERENTIAL INPUT VOLTAGE RANGE EQUAL TO THE SUPPLY VOLTAGE
· TTL, DTL, ECL, MOS, CMOS COMPATIBLE OUTPUTS
