General Description
LM148QML General Description
The LM148 is a true quad LM741. It consists of four independent, high gain, internally compensated, low power operational amplifiers which have been designed to provide functional characteristics identical to those of the familiar LM741 operational amplifier. In addition the total supply current for all four amplifiers is comparable to the supply current of a single LM741 type op amp. Other features include input offset currents and input bias current which are much less than those of a standard LM741. Also, excellent isolation between amplifiers has been achieved by independently biasing each amplifier and using layout techniques which minimize thermal coupling.
The LM148 can be used anywhere multiple LM741 or LM1558 type amplifiers are being used and in applications where amplifier matching or high packing density is required.
LM148QML Maximum Ratings
Supply Voltage ......................................................±22V
Differential Input Voltage...................................... ±44V
Output Short Circuit Duration(Note 2) Continuous
Power Dissipation (Pd at 25°C) (Note 3) 1100mW
Thermal Resistance
JA
CERDIP (Still Air)................................................103°C/W
CERDIP (500LF/ Min Air flow)...............................52°C/W
LCC (Still Air).......................................................90°C/W
LCC (500LF/ Min Air flow)....................................66°C/W
JC
CERDIP................................................................19°C/W
LCC......................................................................21°C/W
Maximum Junction Temperature (TjMAX)............... 150°C
Operating Temperature Range ..−55°C TA +125°C
Storage Temperature Range..... −65°C TA +150°C
Lead Temperature (Soldering, 10 sec.) Ceramic ...300°C
ESD tolerance (Note 4) ............................................500V
Differential Input Voltage...................................... ±44V
Output Short Circuit Duration(Note 2) Continuous
Power Dissipation (Pd at 25°C) (Note 3) 1100mW
Thermal Resistance
JA
CERDIP (Still Air)................................................103°C/W
CERDIP (500LF/ Min Air flow)...............................52°C/W
LCC (Still Air).......................................................90°C/W
LCC (500LF/ Min Air flow)....................................66°C/W
JC
CERDIP................................................................19°C/W
LCC......................................................................21°C/W
Maximum Junction Temperature (TjMAX)............... 150°C
Operating Temperature Range ..−55°C TA +125°C
Storage Temperature Range..... −65°C TA +150°C
Lead Temperature (Soldering, 10 sec.) Ceramic ...300°C
ESD tolerance (Note 4) ............................................500V
LM148QML Features
`741 op amp operating characteristics
`Class AB output stage-no crossover distortion
`Pin compatible with the LM124
`Overload protection for inputs and outputs
`Low supply current drain: 0.6 mA/Amplifier
`Low input offset voltage: 1 mV
`Low input offset current: 4 nA
`Low input bias current 30 nA
`High degree of isolation between amplifiers: 120 dB
`Gain bandwidth product (unity gain): 1.0 MHz
`Class AB output stage-no crossover distortion
`Pin compatible with the LM124
`Overload protection for inputs and outputs
`Low supply current drain: 0.6 mA/Amplifier
`Low input offset voltage: 1 mV
`Low input offset current: 4 nA
`Low input bias current 30 nA
`High degree of isolation between amplifiers: 120 dB
`Gain bandwidth product (unity gain): 1.0 MHz

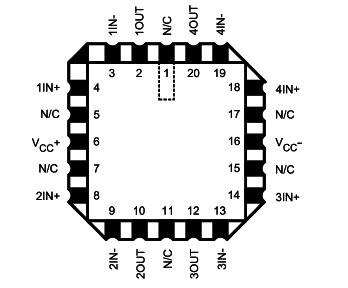

LM148QML Connection Diagram
LM148QML
PDF/DataSheet Download
- Datasheet: LM148QML
- File Size: 800419 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·LM10
- LINER [Linear Technology]
- Low Power Op Amp and Reference
- 805461 KB
- ·LM1001-7R
- POWER-ONE [Power-One]
- 50 Watt AC-DC Converters
- 150434 KB
- ·LM101
- NSC [National Semiconductor]
- Operational Amplifiers
- 521472 KB
- ·LM101A
- LINER [Linear Technology]
- Operational Amplifiers
- 521472 KB
- ·LM101AD
- STMICROELECTRONICS [STMicroelectronics]
- SINGLE OPERATIONAL AMPLIFIER
- 73655 KB
- ·LM101AFK
- TI [Texas Instruments]
- HIGH-PERFORMANCE OPERATIONAL AMPLIFIERS
- 73655 KB
- ·LM101AH
- LINER [Linear Technology]
- Operational Amplifiers
- 397624 KB
- ·LM101AH/883
- NSC [National Semiconductor]
- Operational Amplifiers
- 521472 KB
LM148QML Relative Products
LM148JAN
The LM148JAN is a true quad LM741. It consists of four independent, high gain, internally compensated, low power operational amplifiers which have been designed to provide functional characteristics identical to those of the familiar LM741 operational amplif...
LM148J
The LM148J is one member of the LM148 family which is designed as the quad 741 op amps that consists of four independent, high gain, internally compen-sated, low power operational amplifiers. This device can be used anywhere multiple 741 or 1558 type amplifi...
LM148
The LM148, LM248, and LM348 are quadruple, independent, high-gain, internally compensated operational amplifiers designed to have operating characteristics similar to the mA741. These amplifiers exhibit low supply current drain, and input bias and offset cur...
LM146J
The LM146J is one member of the LM146 family which is designed as the programmable QUAD bipolar operational amplifier because of this device consists of four independent, high gain, internally compensated, low power programmable amplifiers. Features of the...
LM146
The LM146 consists of four independent, high gain, internally compensated, low power programmable amplifiers. Two external resistors (Rset) allow the user to program the gain-bandwith product, slew rate, supply current, input bias current, input offset curre...

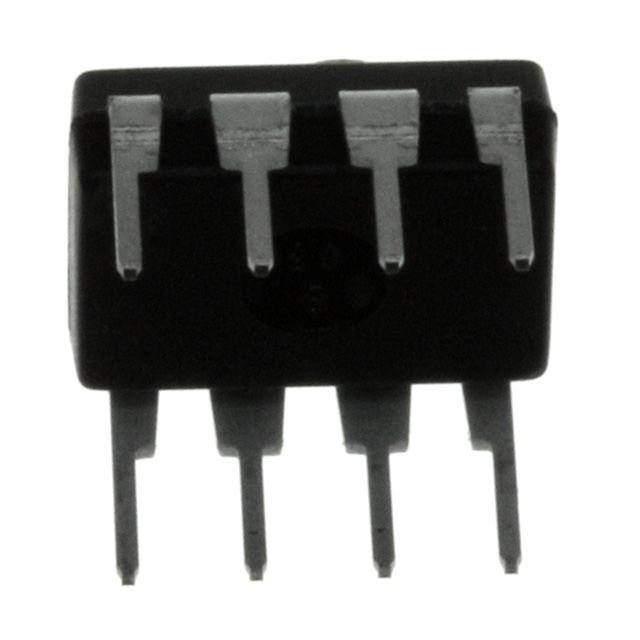

LM1458N/NOPB
