Purchase LM2623LDX/NOPB, In-stock LM2623LDX/NOPB From SeekIC.

MFG:National Semiconductor  Category:Integrated Circuits (ICs)

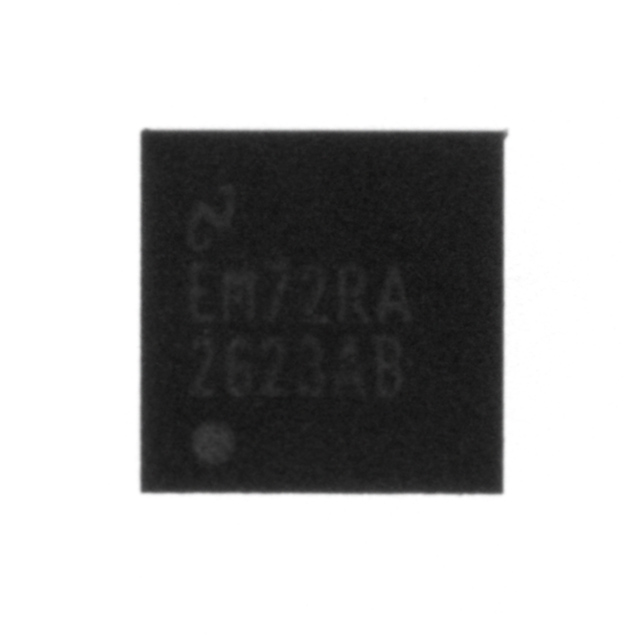

LM2623LDX/NOPB Product Image

LM2 Series Datasheet download

Five Points

Part Number: LM2623LDX/NOPB

Category: Integrated Circuits (ICs)

MFG: National Semiconductor





Descriptions: IC CONVERTER DC/DC BOOST 14LLP

Price Break

4500

Unit Price

1.03750

Extended Price

4668.75

(All prices are in USD) Prices for reference only
Urgent Purchase

LM2623LDX/NOPB General Description

IC CONVERTER DC/DC BOOST 14LLP

LM2623LDX/NOPB Parameters

Technical/Catalog InformationLM2623LDX/NOPB
VendorNational Semiconductor
CategoryIntegrated Circuits (ICs)
TypeStep-Up (Boost)
Number of Outputs1
Voltage - Input0.8 ~ 14 V
Voltage - Output1.24 ~ 14 V
Current - Output2A
Power - Output500mW
Package / Case14-LLP
PackagingTape & Reel (TR)
Internal Switch(s)Yes
SynchronousNo
Rds (On)170 mOhm
Operating Temperature-40°C ~ 85°C
Frequency - Switching300kHz ~ 2MHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LM2623LDX NOPB
LM2623LDXNOPB
LM2623LDX ND
LM2623LDXND
LM2623LDX
