Purchase LM2825, In-stock LM2825 From SeekIC.
MFG:NSC Package Cooled:DIP
Part Number: LM2825
MFG: NSC
Package Cooled: DIP
Description: The LM2825 is a complete 1A DC-DC Buck converter packaged in a 24-lead molded Dual-In-Line integrated ...
- Table of contents:
LM2825
-
Suppliers
DataSheet
General Description
LM2825 General Description
The LM2825 is a complete 1A DC-DC Buck converter packaged in a 24-lead molded Dual-In-Line integrated circuit package.
Contained within the package are all the active and passive components for a high efficiency step-down (buck) switching regulator. Available in fixed output voltages of 3.3V, 5V and 12V, as well as two adjustable versions, these devices can provide up to 1A of load current with fully guaranteed electrical specifications.
Self-contained, this converter is also fully protected from output fault conditions, such as excessive load current, short circuits, or excessive temperatures.
LM2825 Maximum Ratings
Maximum Input Supply (VIN) +45V
SD/SS Pin Input Voltage (Note 2) 6V
Output Pin Voltage
(3.3V, 5.0V and ADJ) −1V V 9V
(12V and H-ADJ) −1V V 16V
ADJ Pin Voltage (ADJ, H-ADJ only) −0.3V V 25V
Power Dissipation Internally Limited
Storage Temperature Range −40 to +125
ESD Susceptibility
Human Body Model (Note 3) 2 kV
Lead Temperature (Soldering 10 sec.) 260
SD/SS Pin Input Voltage (Note 2) 6V
Output Pin Voltage
(3.3V, 5.0V and ADJ) −1V V 9V
(12V and H-ADJ) −1V V 16V
ADJ Pin Voltage (ADJ, H-ADJ only) −0.3V V 25V
Power Dissipation Internally Limited
Storage Temperature Range −40 to +125
ESD Susceptibility
Human Body Model (Note 3) 2 kV
Lead Temperature (Soldering 10 sec.) 260
LM2825 Features
` Minimum design time required
` 3.3V, 5V and 12V fixed output versions
` Two adjustable versions allow 1.23V to 15V outputs
` Wide input voltage range, up to 40V
` Low-power standby mode, IQ typically 65 A
` High efficiency, typically 80%
` ±4% output voltage tolerance
` Excellent line and load regulation
` TTL shutdown capability/programmable Soft-start
` Thermal shutdown and current limit protection
` −40°C to +85°C ambient temperature range
` 3.3V, 5V and 12V fixed output versions
` Two adjustable versions allow 1.23V to 15V outputs
` Wide input voltage range, up to 40V
` Low-power standby mode, IQ typically 65 A
` High efficiency, typically 80%
` ±4% output voltage tolerance
` Excellent line and load regulation
` TTL shutdown capability/programmable Soft-start
` Thermal shutdown and current limit protection
` −40°C to +85°C ambient temperature range
LM2825 Typical Application
· Simple high-efficiency step-down (buck) regulator
· On-card switching regulators
· Efficient pre-regulator for linear regulators
· Distributed power systems
· DC/DC module replacement
· On-card switching regulators
· Efficient pre-regulator for linear regulators
· Distributed power systems
· DC/DC module replacement

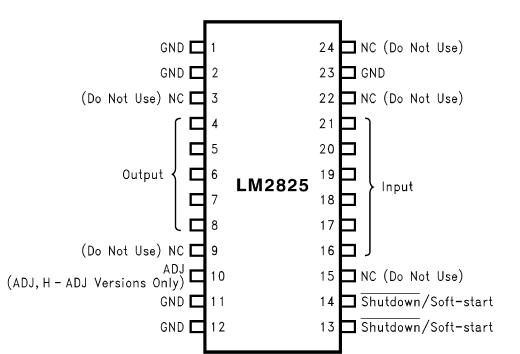

LM2825 Connection Diagram
