Features: · 5% output accuracy over entire operating range· Output current in excess of 1A· Dropout voltage typically 0.6V at 1A load· Low quiescent current· Internal short circuit current limit· Internal thermal shutdown with hysteresis· Functional complement to the LM2940 seriesApplication· Post...
LM2990: Features: · 5% output accuracy over entire operating range· Output current in excess of 1A· Dropout voltage typically 0.6V at 1A load· Low quiescent current· Internal short circuit current limit· In...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Output Current | 1500 mA |
Output Min | -5, -12, -15, -5.2 Volt |
Input Min Voltage | -26 Volt |
Input Max Voltage | 0.3 Volt |
Dropout Voltage | 0.6 Volt |
Adjustable Output | No |
Quiescent Current | 1 mA |
On/Off Pin | No |
Error Flag | No |
RegType | LDO |
Temperature Min | -40 deg C |
Temperature Max | 125 deg C |
Output Max | -5, -12, -15, -5.2 Volt |
Output Voltage | -5, -12, -15, -5.2 Volt |
View Using Catalog |
Input Voltage ....... ..... ..−26V to +0.3V
ESD Susceptibility (Note 2) .............2 kV
Power Dissipation (Note 3)...... Internally Limited
Junction Temperature (TJmax) ..........125°C
Storage Temperature ........−65°C to +150°C
Lead Temperature
(Soldering, 10 sec.)............. .. 260°C
Operating Ratings(Note 1)
Junction Temperature Range (TJ).. −40°C to +125°C
Maximum Input Voltage (Operational) .......−26V

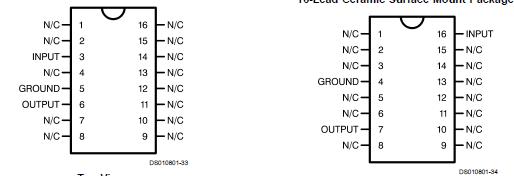

The LM2990 is a three-terminal, low dropout, 1 ampere negative voltage regulator available with fixed output voltages of −5, −5.2, −12, and −15V.
The LM2990 uses new circuit design techniques to provide low dropout and low quiescent current. The dropout voltage at 1A load current is typically 0.6V and a guaranteed worst-case maximum of 1V over the entire operating temperature range. The quiescent current is typically 1 mA with 1A load current and an input-output voltage differentialgreater than 3V. A unique circuit design of the internal bias supply limits the quiescent current to only 9 mA (typical)when the regulator is in the dropout mode (VOUT − VIN 3V). Output voltage accuracy is guaranteed to ±5% over load, and temperature extremes.
The LM2990 is short-circuit proof, and thermal shutdown includes hysteresis to enhance the reliability of the devicewhen overloaded for an extended period of time. The LM2990 is available in a 3-lead TO-220 package and is ratedfor operation over the automotive temperature range of−40°C to +125°C.
