Part Number: LM339,A
Description: These devices consist of four independent precision voltage comparators with an offset voltage specifi...
- Table of contents:
LM339,A
-
Suppliers
DataSheet
General Description
LM339,A General Description
These devices consist of four independent precision voltage comparators with an offset voltage specifications as low as 2mV max for LM339A,LM239A and LM139A. All these comparators were designed specifically to operate from a single power supply aver a wide range of voltages.Operation from split power supplies is also possible.
These comparators also have a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.
LM339,A Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Supply voltage |
±18 or 36 |
V |
|
Vid |
Differential Input Voltage |
±36 |
V |
|
Vi |
Input Voltage |
-0.3 to +36 |
V |
| Output Short-circuit to Ground - note 1) |
Infinite |
||
|
Pd |
Power Dissipation 2) DIP14 SO14 TSSOP14 |
1500 830 710 |
mW |
|
Tstg |
Storage Temperature Range |
-65 to +150 |
°C |
|
Tj |
Junction Temperature |
+150 |
°C |
1. Short-circuits from the output to VCC+ can cause excessive heating and eventual destruction. The maximum output current is approximately 20mAindependent of the magnitude of VCC+
2. Pd is calculated with Tamb = +25°C, Tj = +150°C and Rthja = 80°C/W for DIP14 package
= 150°C/W for SO14 package
= 175°C/W for TSSOP14 package
LM339,A Features
· WIDE SINGLE SUPPLY VOLTAGE RANGE OR DUAL SUPPLIES FOR ALL DEVICES :+2V TO +36V OR ±1V TO ±18V
· VERY LOW SUPPLY CURRENT (1.1mA) INDEPENDENT OF SUPPLY VOLTAGE (1.4mW/comparator at +5V)
· LOW INPUT BIAS CURRENT : 25nA TYP
· LOW INPUT OFFSET CURRENT : ±5nA TYP
· LOW INPUT OFFSET VOLTAGE : ±1mV TYP
· INPUT COMMON-MODE VOLTAGE RANGE INCLUDES GROUND
· LOW OUTPUT SATURATION VOLTAGE :250mV TYP; (Io = 4mA)
· DIFFERENTIAL INPUT VOLTAGE RANGE EQUAL TO THE SUPPLY VOLTAGE
· TTL, DTL, ECL, MOS, CMOS COMPATIBLE OUTPUTS
LM339,A
PDF/DataSheet Download
- Datasheet: LM339,A
- File Size: 94256 KB
- Manufacturer: STMicro
- Click here to Download
- ·LM301
- STMICROELECTRONICS [STMicroelectronics]
- SINGLE OPERATIONAL AMPLIFIER
- 521472 KB
- ·LM301A
- STMICROELECTRONICS [STMicroelectronics]
- SINGLE OPERATIONAL AMPLIFIER
- 397624 KB
- ·LM301AD
- STMICROELECTRONICS [STMicroelectronics]
- SINGLE OPERATIONAL AMPLIFIER
- 132599 KB
- ·LM301AH
- NSC [National Semiconductor]
- Operational Amplifiers
- 521472 KB
- ·LM301AJ8
- LINER [Linear Technology]
- Operational Amplifiers
- 397624 KB
- ·LM301AN
- STMICROELECTRONICS [STMicroelectronics]
- SINGLE OPERATIONAL AMPLIFIER
- 521472 KB
- ·LM301AP
- TI [Texas Instruments]
- HIGH-PERFORMANCE OPERATIONAL AMPLIFIERS
- 73655 KB
- ·LM302
- NSC [National Semiconductor]
- LM102/LM302 Voltage Followers
- 197186 KB
LM339,A Relative Products
LM339,
These comparators LM339, are designed for use in level detection, low−level sensing and memory applications in consumer, automotive, and industrial electronic applications.
LM339
The LM339 is designed as one kind of quad voltage comparator that can be used in (1)square wave generator; (2)time delay generators; (3)pulse generators; (4)multivibrators; (5)high voltage digital logic gates; (6)A/D converters; (7)MOS clock timers applicati...
LM338T/NOPB
IC REGULATOR ADJ 5A TO-220
LM338K
The LM338K is designed as one kind of three-terminal 5-A adjustable voltage regulator device that is exceptionally easy to use and require only 2 resistors to set the output voltage. And this device is packaged in standard steel TO-3 transistor packages. Fe...
LM338
The LM338 series of adjustable 3-terminal positive voltage regulators is capable of supplying in excess of 5A over a 1.2V to 32V output range. They are exceptionally easy to use and require only 2 resistors to set the output voltage. Careful circuit design h...

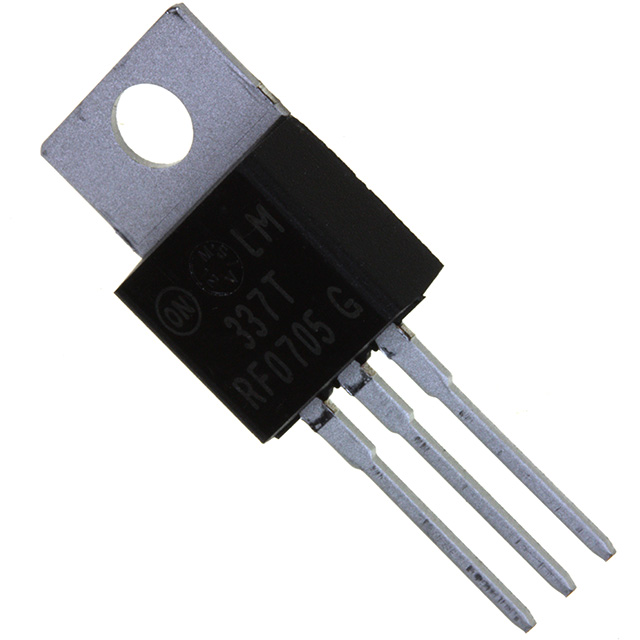

LM337TG
