Part Number: LM3524D



MFG: NSC

Package Cooled: STK

D/C: 2003+

Description: The LM3524D family is an improved version of the industry standard LM3524. It has improved specifications and ...


Urgent Purchase

LM3524D General Description


The LM3524D family is an improved version of the industry standard LM3524. It has improved specifications and additional features yet is pin for pin compatible with existing 3524 families. New features reduce the need for additional external circuitry often required in the original version.

The LM3524D has a ±1% precision 5V reference. The current carrying capability of the output drive transistors has been raised to 200 mA while reducing VCEsat and increasing VCE breakdown to 60V. The common mode voltage range of the error-amp has been raised to 5.5V to eliminate the need for a resistive divider from the 5V reference.

In the LM3524D the circuit bias line has been isolated from the shut-down pin. This prevents the oscillator pulse amplitude and frequency from being disturbed by shut-down. Also at high frequencies (≃300 kHz) the max. duty cycle per output has been improved to 44% compared to 35% max. duty cycle in other 3524s.

In addition, the LM3524D can now be synchronized externally, through pin 3. Also a latch has been added to insure one pulse per period even in noisy environments. The LM3524D includes double pulse suppression logic that insures when a shut-down condition is removed the state of the T-flip-flop will change only after the first clock pulse has arrived. This feature prevents the same output from being pulsed twice in a row, thus reducing the possibility of core saturation in push-pull designs.

Application Notes


TitleSize in KbytesDate
AN-694: Application Note 694 A DMOS 3A, 55V, H-Bridge: The LMD18200 408 Kbytes 26-Sep-02 Download
AN-694 (Japanese): Application Note 694 A DMOS 3A, 55V, H-Bridge: The LMD18200
400 Kbytes

If you have trouble printing or viewing PDF file(s), see Printing Problems.

More Application Notes


TitleSize in KbytesDate
AN-292: Application Note 292 Applications of the LM3524 Pulse-Width-Modulator239 Kbytes3-Oct-02Download
AN-715: Application Note 715 LM385 Feedback Provides Regulator Isolation50 Kbytes3-Oct-02Download
AN-288: Application Note 288 System-Oriented DC-DC Conversion Techniques405 Kbytes3-Oct-02Download
AN-293: Application Note 293 Control Applications of CMOS DACs385 Kbytes4-Oct-04Download
AN-272: Application Note 272 Op Amp Booster Designs382 Kbytes2-Oct-02Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

LM3524D Maximum Ratings

Input Min Voltage5 Volt
Input Max Voltage40 Volt
Adjustable OutputYes
Frequency Min0.001 kHz
Frequency Max550 kHz
Adj Switch FrequencyYes
Sync PinYes
On/Off PinYes
SoftStartYes
Error FlagNo
Special FeaturesDual bipolar (C, E) outputs
TopologyBuck, Boost, Flyback, Push-pull
Output Current200 mA
Step-DownYes
Step-UpYes
InvertingYes
FlybackYes
RegTypeSwitching Regulator
Multiple Output CapabilityYes
Temperature Min0 deg C
Temperature Max80 deg C
View Using Catalog

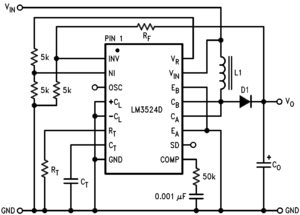

LM3524D Connection Diagram

LM3524D Image

LM3524D datasheet

LM3524D
PDF/DataSheet Download

Find LM3524D Suppliers

  • ·LM301
  • STMICROELECTRONICS [STMicroelectronics]
  • SINGLE OPERATIONAL AMPLIFIER
  • 521472 KB
  • LM301 Datasheet Download
  • ·LM301A
  • STMICROELECTRONICS [STMicroelectronics]
  • SINGLE OPERATIONAL AMPLIFIER
  • 397624 KB
  • LM301A Datasheet Download
  • ·LM301AD
  • STMICROELECTRONICS [STMicroelectronics]
  • SINGLE OPERATIONAL AMPLIFIER
  • 132599 KB
  • LM301AD Datasheet Download
  • ·LM301AH
  • NSC [National Semiconductor]
  • Operational Amplifiers
  • 521472 KB
  • LM301AH Datasheet Download
  • ·LM301AJ8
  • LINER [Linear Technology]
  • Operational Amplifiers
  • 397624 KB
  • LM301AJ8 Datasheet Download
  • ·LM301AN
  • STMICROELECTRONICS [STMicroelectronics]
  • SINGLE OPERATIONAL AMPLIFIER
  • 521472 KB
  • LM301AN Datasheet Download
  • ·LM301AP
  • TI [Texas Instruments]
  • HIGH-PERFORMANCE OPERATIONAL AMPLIFIERS
  • 73655 KB
  • LM301AP Datasheet Download
  • ·LM302
  • NSC [National Semiconductor]
  • LM102/LM302 Voltage Followers
  • 197186 KB
  • LM302 Datasheet Download

LM3524D Relative Products

  • LM3520SD/NOPB

    LM3520SD/NOPB

    IC LED DRVR WT/OLED BCKLGT 14LLP

  • LM3520

    LM3520

    The LM3520 is a dual step-up DC/DC converter, designed to drive up to 5 white LEDs with a constant current and to power an organic LED display with a constant voltage. A single external resistor is used to set the maximum LED current. The LED current can be...

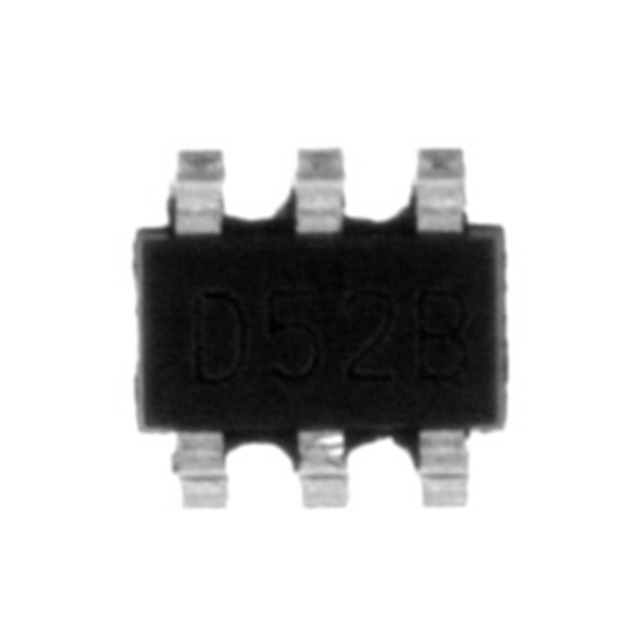

  • LM3519MK-20/NOPB
