LM358AW

Features:

Internally frequency compensated
Large DC voltage gain: 100dB
Wide bandwidth (unity gain): 1.1mHz(temperature compensated)
Very low supply current/op (500A) essentially independent of supply voltage
Low input bias current: 20nA(temperature compensated)
Low input offset voltage: 2mV
Low input offset current: 2nA
Input common-mode voltage range includes ground
Differential input voltage range equal to the power supply voltage
Large output voltage swing 0V to (Vcc - 1.5V)
ESD internal protection: 1.5kV

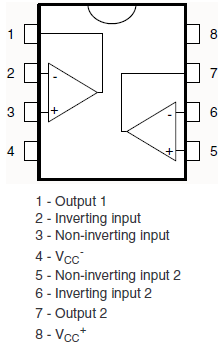

Pinout




Specifications

Symbol	Parameter	LM158W,AW	LM258W,AW	LM358W,AW	Unit
VCC	Supply voltage	+32			V
Vi	Input Voltage	-0.3 to +32			V
Vid	Differential Input Voltage	+32			V
Ptot	Power Dissipation (1)	500			mW
	Output Short-circuit Duration (2)	Infinite
Iin	Input Current (3)	50			mA
Toper	Operating Free-air Temperature Range	-55 to +125	-40 to +105	0 to +70	°C
Tstg	Storage Temperature Range	-65 to +150			°C
ESD	HBM: Human Body Model(4)	1.5			kV
	MM: Machine Model(5)	200			V
	CDM: Charged Device Model	1.5			kV

Description

These circuits LM358AW consist of two independent, highgain,internally frequency-compensated which were designed specifically to operate from a single power supply over a wide range of voltages.The low power supply drain is independent of the magnitude of the power supply voltage.

Application areas include transducer amplifiers,DC gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard +5V which is used in logic and will easily provide the required interface electronics without requiring any additional power supply.

In the linear mode the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage.
