Part Number: LM361



MFG: NS

Package Cooled: DIP

D/C: 500

Description: The LM161/LM261/LM361 is a very high speed differential input, complementary TTL output voltage compar...


Urgent Purchase

LM361 General Description


The LM161/LM261/LM361 is a very high speed differential input, complementary TTL output voltage comparator with improved characteristics over the SE529/NE529 for which it is a pin-for-pin replacement. The device has been optimized for greater speed performance and lower input offset voltage. Typically delay varies only 3 ns for over-drive variations of 5 mV to 500 mV. It may be operated from op amp supplies (±15V).

Complementary outputs having maximum skew are provided. Applications involve high speed analog to digital converters and zero-crossing detectors in disk file systems.

LM361 Maximum Ratings

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Positive Supply Voltage, V+ .................................+16V
Negative Supply Voltage, V−............................... −16V
Gate Supply Voltage, VCC ......................................+7V
Output Voltage...................................................... +7V
Differential Input Voltage...................................... ±5V
Input Common Mode Voltage ................................±6V
Power Dissipation........................................... 600 mW
Storage Temperature Range ..........−65°C to +150°C
Operating Temperature Range TMIN TMAX
LM161............................................ −55°C to +125°C
LM261 ..............................................−25°C to +85°C
LM361 ..................................................0°C to +70°C
Lead Temp. (Soldering, 10 seconds) .................260°C
For Any Device Lead Below V−............................... 0.3V

LM361 Features

·Independent strobes
·Guaranteed high speed: 20 ns max
·Tight delay matching on both outputs
·Complementary TTL outputs
·Operates from op amp supplies: ±15V
·Low speed variation with overdrive variation
·Low input offset voltage
·Versatile supply voltage range

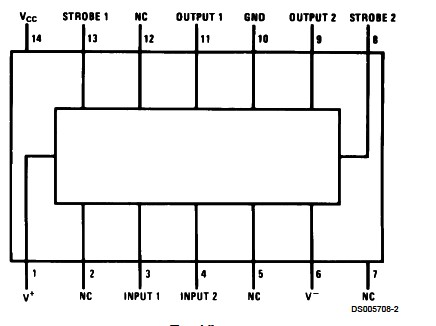

LM361 Connection Diagram

LM361 Connection Diagram

LM361 datasheet

LM361
PDF/DataSheet Download

Find LM361 Suppliers

  • ·LM301
  • STMICROELECTRONICS [STMicroelectronics]
  • SINGLE OPERATIONAL AMPLIFIER
  • 521472 KB
  • LM301 Datasheet Download
  • ·LM301A
  • STMICROELECTRONICS [STMicroelectronics]
  • SINGLE OPERATIONAL AMPLIFIER
  • 397624 KB
  • LM301A Datasheet Download
  • ·LM301AD
  • STMICROELECTRONICS [STMicroelectronics]
  • SINGLE OPERATIONAL AMPLIFIER
  • 132599 KB
  • LM301AD Datasheet Download
  • ·LM301AH
  • NSC [National Semiconductor]
  • Operational Amplifiers
  • 521472 KB
  • LM301AH Datasheet Download
  • ·LM301AJ8
  • LINER [Linear Technology]
  • Operational Amplifiers
  • 397624 KB
  • LM301AJ8 Datasheet Download
  • ·LM301AN
  • STMICROELECTRONICS [STMicroelectronics]
  • SINGLE OPERATIONAL AMPLIFIER
  • 521472 KB
  • LM301AN Datasheet Download
  • ·LM301AP
  • TI [Texas Instruments]
  • HIGH-PERFORMANCE OPERATIONAL AMPLIFIERS
  • 73655 KB
  • LM301AP Datasheet Download
  • ·LM302
  • NSC [National Semiconductor]
  • LM102/LM302 Voltage Followers
  • 197186 KB
  • LM302 Datasheet Download

Related Part Number

LM361 Relative Products

  • LM360

    LM360

    The LM160/LM360 is a very high speed differential input, complementary TTL output voltage comparator with improved characteristics over the A760/A760C, for which it is a pin-for-pin replacement. The device has been optimized for greater speed, input impedanc...

  • LM35DZ/NOPB

    LM35DZ/NOPB

    IC SENSOR PREC CENT TEMP TO-92

  • LM35DT/NOPB

    LM35DT/NOPB

    The LM35DT/NOPB is a kind of precision integrated-circuit temperature sensor, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature. Features of the LM35DT/NOPB are:(1) calibrated directly i ° celsius (cetigrade); (2) liear ...

  • LM35DMX/NOPB

    LM35DMX/NOPB

    IC SENSOR PREC CENT TEMP 8-SOIC

  • LM35DM/NOPB

    LM35DM/NOPB

    IC SENSOR PREC CENT TEMP 8-SOIC

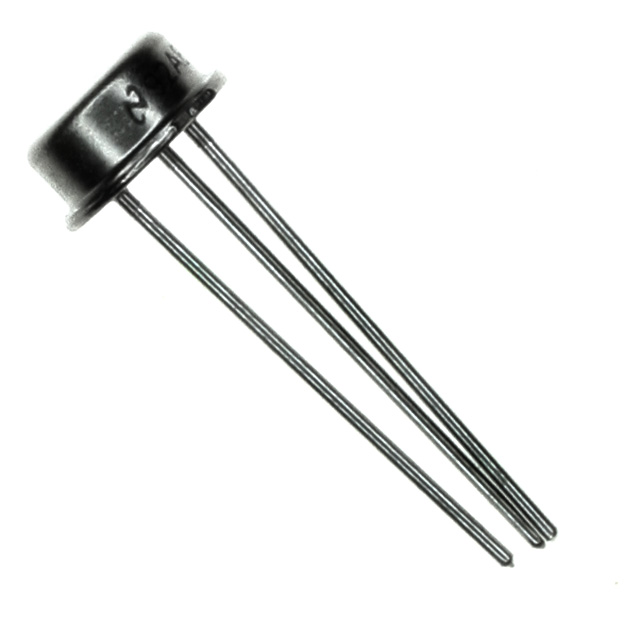

  • LM35DH/NOPB
