Product Details

Description



Features:

No frequency Compensation Required
No latch-up
Large common mode and differential voltage range
Parameter tracking over temperature range
Gain and phase match between amplifiers
Internally frequency compensated
Low noise input transistors

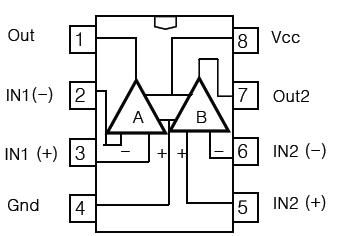

Pinout

  Connection Diagram




Specifications

LM4558
UNIT
Supply Voltage
VCC
± 22
V
Differential Input Voltage
VI(DIFF)
±30
V
Input Voltage
VI
±15
V
Duration of output short circuit to ground, one amplifier at a time
Unlimited
Short temperature range
Tstg
-65 to 150
°C





Description

The LM4558 devices is a monolithic integrated circuit designed for dual operational amplifier.
The high common-mode input voltage range and the absence of latch-up make these amplifiers ideal for voltage-follower applications. The devices are short-circuit protected and the internal frequency compen -sation ensures stability without external components.
The LM4558 is characterized for operation from 0'C to 70'C.
