MFG:National Semiconductor (VA) Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: National Semiconductor (VA)
Descriptions: IC AMP AUDIO PWR 3.2W STER 24LLP
| Technical/Catalog Information | LM4863LQ/NOPB |
| Vendor | National Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Package / Case | 24-LLP |
| Type | Class AB |
| Output Type | 2-Channel (Stereo) with Stereo Headphones |
| Voltage - Supply | 2 V ~ 5.5 V |
| Packaging | Digi-Reel? |
| Features | Depop, Shutdown, Thermal Protection |
| Max Output Power x Channels @ Load | 3.2W x 2 @ 3 Ohm; 440mW x 2 @ 8 Ohm |
| Drawing Number | 14; LQA24A; ; 24 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LM4863LQ NOPB LM4863LQNOPB LM4863LQDKR ND LM4863LQDKRND LM4863LQDKR |
LM40
PDF/DataSheet Download
The LM4863 is a dual bridge-connected audio power ampli- fier which, when connected to a 5V supply, will deliver 2.2W toa4? load (Note 1) or 2.5W to a 3? load (Note 2)with less than 1.0% THD+N. In addition, the headphone input pin al- lows the amplifiers to ...
IC AMP AUDIO PWR .825W AB 8SOIC
IC AMP AUDIO PWR .825W AB 8SOIC
The LM4862 is a bridge-connected audio power amplifier capable of delivering typically 675mW of continuous average power to an 8 load with 1% THD+N from a 5V power supply. Boomer audio power amplifiers were designed specifically to provide high quality outp...

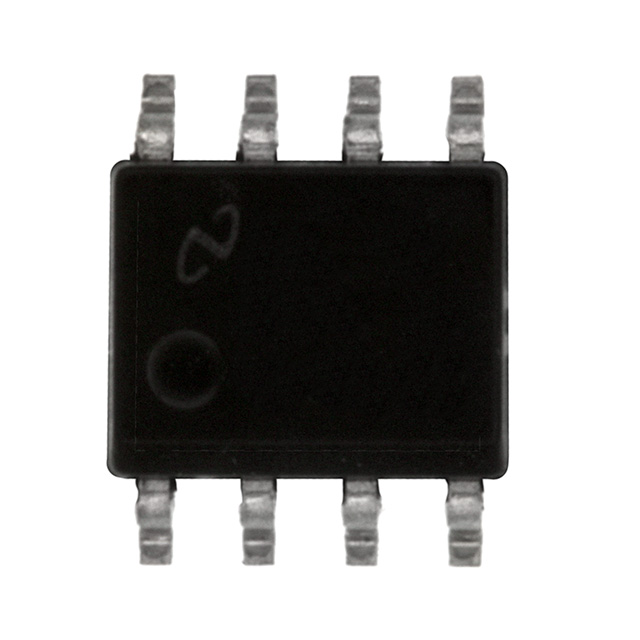

IC AMP AUDIO PWR 1.5W MONO 8SOIC
IC AMP AUDIO PWR 1.5W MONO 8SOIC
