Part Number: LM4865



MFG: NS





Description: The LM4865 is a mono bridged audio power amplifier withDC volume control, capable of delivering 750 mW...


Urgent Purchase

LM4865 General Description


The LM4865 is a mono bridged audio power amplifier withDC volume control, capable of delivering 750 mW of continuousaverage power into an 8W load with less than 1% THDfrom a 5V power supply. Switching between bridged speakermode and headphone (single ended) mode is accomplishedvia a headphone sense pin. In addition, LM4865 is set intolow current consumption shutdown mode (0.7 µA typical) bylowering the DC Vol/SD pin to below 0.3V.

Boomer audio power amplifiers are designed specifically toprovide high power audio output, with quality sound, from alow supply voltage source while requiring the minimalamount of external components.

LM4865 Maximum Ratings

Supply Voltage                                                 6.0V
Storage Temperature                    −65 to +150
Input Voltage                           −0.3V to VDD +0.3V
Power Dissipation (Note 3)         Internally Limited
ESD Susceptibility (Note 4)                           2000V
ESD Susceptibility (Note 5)                             200V
Junction Temperature                                    150
Soldering Information
Vapor Phase (60 sec.)                                   215
Infrared (15 sec.)                                          220
Thermal Resistance
qJC (SOP)                                                   35/W
qJA (SOP)                                                  150/W
qJC (MSOP)                                                 56/W
qJA (MSOP)                                                190/W

LM4865 Features

 DC volume control
Headphone amplifier mode
"Click and pop" suppression
Shutdown control when volume control pin is low
Thermal shutdown protection

LM4865 Typical Application

 GSM phones and accessories, DECT, office phones
Hand held radio
Other portable audio devices

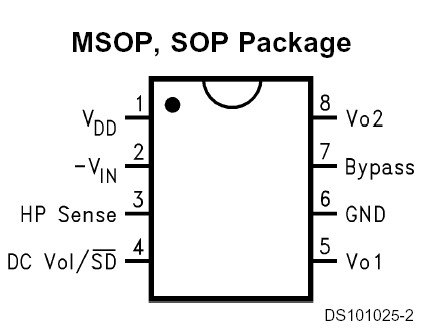

LM4865 Connection Diagram

LM4865 Connection Diagram
