Description: The LM4866 is a bridge-connected (BTL) stereo audiopower amplifier which, when connected to a 5V suppl...
- Table of contents:
LM4866
-
Suppliers
DataSheet
General Description
LM4866 General Description
The LM4866 is a bridge-connected (BTL) stereo audiopower amplifier which, when connected to a 5V supply,delivers 2.2W to a 4Ω load (Note 1) or 2.5W to a 3Ω load(Note 2) with less than 1.0% THD+N.
With the LM4866 packaged in the LLP, the customer benefitsinclude low thermal impedance, low profile, and small size.This package minimizes PCB area and maximizes outputpower.
The LM4866 features an externally controlled, low-powerconsumption shutdown mode, and thermal shutdown protection.It also utilizes circuitry to reduce "clicks and pops"during device turn-on.
Boomer audio power amplifiers are designed specifically touse few external components and provide high quality outputpower in a surface mount package.
LM4866 Maximum Ratings
Supply Voltage 6.0V
Storage Temperature −65to +150
Input Voltage −0.3V to VDD
+0.3V
Power Dissipation (Note 4) Internally limited
ESD Susceptibility(Note 5) 2000V
ESD Susceptibility (Note 6) 200V
Junction Temperature 150
Solder Information
Small Outline Package
Vapor Phase (60 sec.) 215
Infrared (15 sec.) 220
Thermal Resistance
JC (typ)-MTC20 20/W
JA (typ)-MTC20 80/W
JC (typ)-LQ24A 3.0/W
JA (typ)-LQ24A 42/W (Note 7)
JC (typ)-MXA20A 2/W
JA (typ)-MXA20A 41/W (Note 8)
JA (typ)-MXA20A 51/W (Note 9)
JA (typ)-MXA20A 90/W (Note 10)
Storage Temperature −65to +150
Input Voltage −0.3V to VDD
+0.3V
Power Dissipation (Note 4) Internally limited
ESD Susceptibility(Note 5) 2000V
ESD Susceptibility (Note 6) 200V
Junction Temperature 150
Solder Information
Small Outline Package
Vapor Phase (60 sec.) 215
Infrared (15 sec.) 220
Thermal Resistance
JC (typ)-MTC20 20/W
JA (typ)-MTC20 80/W
JC (typ)-LQ24A 3.0/W
JA (typ)-LQ24A 42/W (Note 7)
JC (typ)-MXA20A 2/W
JA (typ)-MXA20A 41/W (Note 8)
JA (typ)-MXA20A 51/W (Note 9)
JA (typ)-MXA20A 90/W (Note 10)
LM4866 Features
Stereo BTL amplifier mode
"Click and pop" suppression circuitry
Unity-gain stable
Thermal shutdown protection circuitry
TSSOP and Exposed-DAP LLP packages
"Click and pop" suppression circuitry
Unity-gain stable
Thermal shutdown protection circuitry
TSSOP and Exposed-DAP LLP packages
LM4866 Typical Application
Multimedia monitors
Portable and desktop computers
Portable televisions
Portable and desktop computers
Portable televisions

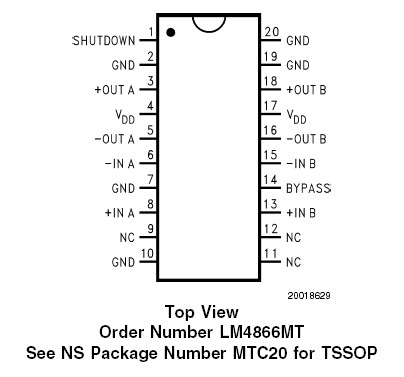

LM4866 Connection Diagram
LM4866
