LM49120

PinoutSpecificationsPower@ 8Ohms, 1% THD.54 WattTHD0.015 %PSRR83 dBChannels3 ChannelsTHD Conditionsf=1kHz, Pout = 12mW, RL=32ohms, SE or OCL HP out, mode 4PSRR ConditionsVripple = 200mVpp, fripple=217Hz, RL=32ohms, Cb=2.2uFUser Supply3.3 VoltAudio MuxYesCapless HeadphoneYesClassD DriverNoInterface...

product image

LM49120 Picture
See larger image
SeekIC No. : 004395880 Detail

LM49120: PinoutSpecificationsPower@ 8Ohms, 1% THD.54 WattTHD0.015 %PSRR83 dBChannels3 ChannelsTHD Conditionsf=1kHz, Pout = 12mW, RL=32ohms, SE or OCL HP out, mode 4PSRR ConditionsVripple = 200mVpp, fripple=2...

LM49120 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM49120
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Power@ 8Ohms, 1% THD.54 Watt
THD0.015 %
PSRR83 dB
Channels3 Channels
THD Conditionsf=1kHz, Pout = 12mW, RL=32ohms, SE or OCL HP out, mode 4
PSRR ConditionsVripple = 200mVpp, fripple=217Hz, RL=32ohms, Cb=2.2uF
User Supply3.3 Volt
Audio MuxYes
Capless HeadphoneYes
ClassD DriverNo
InterfaceI2C
Stereo Inputs1
National 3DNo
Digital Volume Control Max18 dB
Digital Volume Control Min-86 dB
Output Modes24
Supply Range+1.4 - +3.6 V
Mono Inputs1
Temperature Min-40 deg C
Temperature Max85 deg C
Loudspeaker TypeClass AB
Headphone TypeVirtual Ground
AEC Q-100 Automotive Grade0
Automotive Selection GuideNo
Loudspeaker Outputs1
View Using Catalog



Description

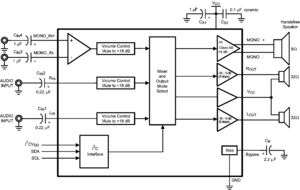

The LM49120 is a compact audio subsystem designed for portable handheld applications such as cellular phones. The LM49120 combines a mono 1.3W speaker amplifier, stereo 85mW/ch output capacitorless headphone amplifier, 32 step volume control, and an input mixer/multiplexer into a single 16bump micro SMD package.

The LM49120 has three input channels: two single-ended stereo inputs and a differential mono input. Each input features a 32-step digital volume control. The headphone output stage features an 8 step (-18dB 0dB) attenuator, while the speaker output stage has two selectable (0dB/+6dB) gain settings. The digital volume control and mode control are programmed through a two-wire I 2C compatible interface.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LM49120TL CMOS7 0 16561 0 0 954000 4 270700104
LM49120TLX CMOS7 0 16561 0 0 954000 4 270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.
