Position: Home > Datasheet list > LM5 Series > Index L > LM5110-2MX/NOPB
Electronica China

Purchase LM5110-2MX/NOPB, In-stock LM5110-2MX/NOPB From SeekIC.

MFG:National Semiconductor  Category:Integrated Circuits (ICs)

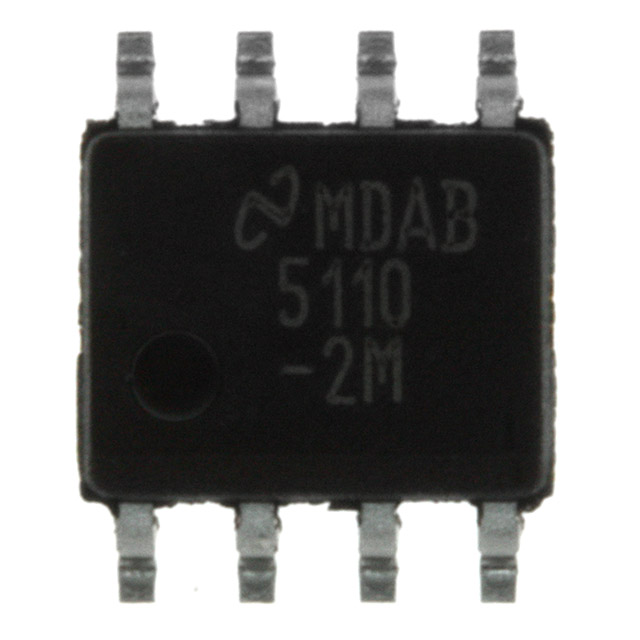

LM5110-2MX/NOPB Product Image

LM5 Series Datasheet download

Five Points

Part Number: LM5110-2MX/NOPB

Category: Integrated Circuits (ICs)

MFG: National Semiconductor





Descriptions: IC DRIVER DUAL 5A NEG VOUT 8SOIC

Price Break

2500

Unit Price

.73125

Extended Price

1828.12

(All prices are in USD) Prices for reference only
Urgent Purchase

LM5110-2MX/NOPB General Description

IC DRIVER DUAL 5A NEG VOUT 8SOIC

LM5110-2MX/NOPB Parameters

Technical/Catalog InformationLM5110-2MX/NOPB
VendorNational Semiconductor
CategoryIntegrated Circuits (ICs)
ConfigurationLow-Side
Voltage - Supply3.5 V ~ 14 V
Current - Peak5A
Delay Time25ns
Package / Case8-SOIC (3.9mm Width)
PackagingTape & Reel (TR)
Number of Outputs2
Input TypeInverting
Number of Configurations2
Operating Temperature-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LM5110 2MX NOPB
LM51102MXNOPB
LM5110 2MX ND
LM51102MXND
LM5110-2MX
