Purchase LM5111-2MX, In-stock LM5111-2MX From SeekIC.

MFG:National Semiconductor  Category:Integrated Circuits (ICs)

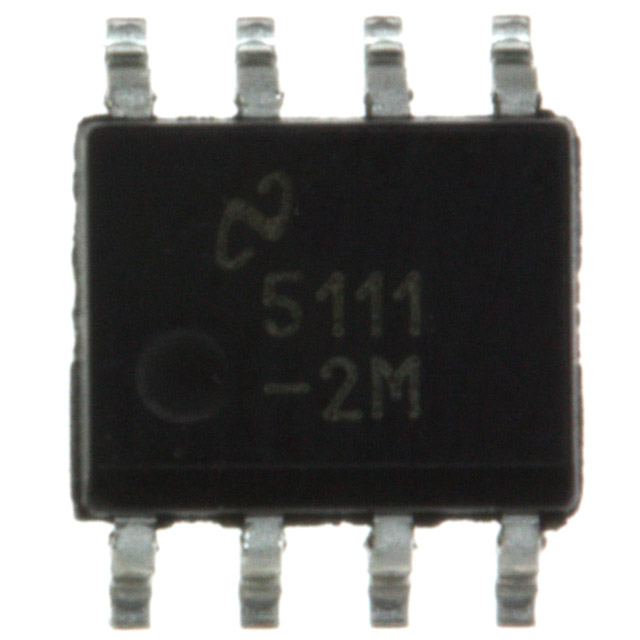

LM5111-2MX Product Image

LM5 Series Datasheet download

Five Points

Part Number: LM5111-2MX

Category: Integrated Circuits (ICs)

MFG: National Semiconductor





Descriptions: IC MOSFET DRIVER DUAL 5A 8-SOIC

Price Break

7500

Unit Price

.77300

Extended Price

5797.50

(All prices are in USD) Prices for reference only
Urgent Purchase

LM5111-2MX General Description

IC MOSFET DRIVER DUAL 5A 8-SOIC

LM5111-2MX Parameters

Technical/Catalog InformationLM5111-2MX
VendorNational Semiconductor
CategoryIntegrated Circuits (ICs)
ConfigurationLow-Side
Voltage - Supply3.5 V ~ 14 V
Current - Peak5A
Delay Time25ns
Package / Case8-SOIC (3.9mm Width)
PackagingTape & Reel (TR)
Number of Outputs2
Input TypeInverting
Number of Configurations2
Operating Temperature-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)-
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names LM5111 2MX
LM51112MX

LM5111-2MX datasheet

LM5111-2MX
PDF/DataSheet Download
