Part Number: LM5111
Description: The LM5111 Dual Gate Driver replaces industry standard gate drivers with improved peak output current ...
- Table of contents:
LM5111
-
Suppliers
DataSheet
General Description
LM5111 General Description
The LM5111 Dual Gate Driver replaces industry standard gate drivers with improved peak output current and efficiency. Each "compound" output driver stage includes MOS and bipolar transistors operating in parallel that together sink more than 5A peak from capacitive loads. Combining the unique characteristics of MOS and bipolar devices reduces drive current variation with voltage and temperature. Undervoltage lockout protection is also provided. The drivers can be operated in parallel with inputs and outputs connected to double the drive current capability. This device is available in the SOIC-8 package.
LM5111 Maximum Ratings
VCC to VEE ..............................................................................................−0.3V to 15V
IN to VEE .................................................................................................−0.3V to 15V
Storage Temperature Range, (TSTG) .............................................−55°C to +150°C
Maximum Junction Temperature,
(TJ(max)) ........................................................................................................+150°C
Operating Junction Temperature ....................................................................+125°C
ESD Rating .............................................................................................................2kV
IN to VEE .................................................................................................−0.3V to 15V
Storage Temperature Range, (TSTG) .............................................−55°C to +150°C
Maximum Junction Temperature,
(TJ(max)) ........................................................................................................+150°C
Operating Junction Temperature ....................................................................+125°C
ESD Rating .............................................................................................................2kV
LM5111 Features
·Independently drives two N-Channel MOSFETs
· Compound CMOS and bipolar outputs reduce output current variation
· 5A sink/3A source current capability
· Two channels can be connected in parallel to double the drive current
·Independent inputs (TTL compatible)
· Fast propagation times (25 ns typical)
· Fast rise and fall times (14 ns/12 ns rise/fall with 2 nF load)
· Available in dual non-inverting, dual inverting and combination configurations
· Supply rail under-voltage lockout protection
· Pin compatible with industry standard gate drivers
LM5111 Typical Application
·Synchronous Rectifier Gate Drivers
·Switch-mode Power Supply Gate Driver
· Solenoid and Motor Drivers
LM5111
PDF/DataSheet Download
- Datasheet: LM5111
- File Size: 210443 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·LM50
- NSC [National Semiconductor]
- SOT-23 Single-Supply Centigrade Temperature Sensor
- 180490 KB
- ·LM5000
- NSC [National Semiconductor]
- High Voltage Switch Mode Regulator
- 448866 KB
- ·LM5000-3MTC
- NSC [National Semiconductor]
- High Voltage Switch Mode Regulator
- 448866 KB
- ·LM5000-3MTCEP
- NSC [National Semiconductor]
- High Voltage Switch Mode Regulator
- 448866 KB
- ·LM5000-3MTCX
- NSC [National Semiconductor]
- High Voltage Switch Mode Regulator
- 448866 KB
- ·LM5000-3MTCXEP
- NSC [National Semiconductor]
- High Voltage Switch Mode Regulator
- 448866 KB
- ·LM5000SD-3
- NSC [National Semiconductor]
- High Voltage Switch Mode Regulator
- 448866 KB
- ·LM5000SD-3EP
- NSC [National Semiconductor]
- High Voltage Switch Mode Regulator
- 448866 KB
LM5111 Relative Products
LM5110-3SDX/NOPB
IC DRIVER DUAL 5A NEG VOUT 10LLP
LM5110-3SD
IC DRIVER DUAL 5A NEG VOUT 10LLP
LM5110-3MX/NOPB
IC DRIVER DUAL 5A NEG VOUT 8SOIC
LM5110-3M/NOPB
IC DRIVER DUAL 5A NEG VOUT 8SOIC
LM5110-2SDX/NOPB
IC DRIVER DUAL 5A NEG VOUT 10LLP

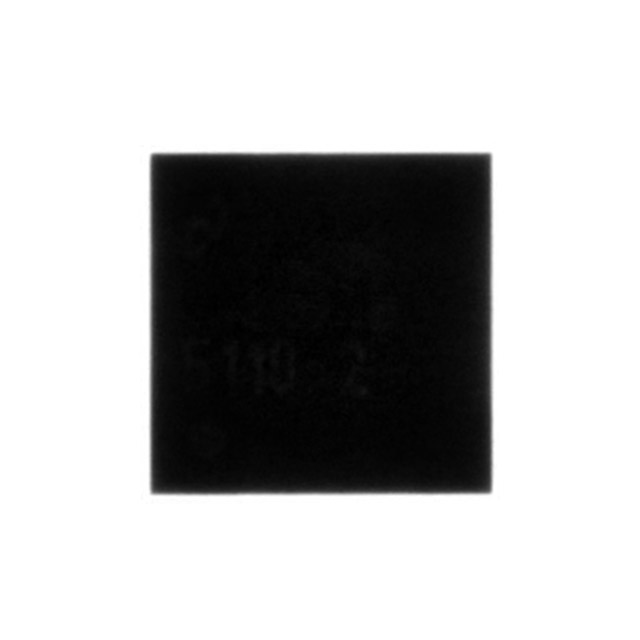

LM5110-2SD
