MFG:NS Package Cooled:SOP8 D/C:09+
MFG: NS
Package Cooled: SOP8
D/C: 09+
Description: he LM6181 current-feedback amplifier offers an unparalleled combination of bandwidth, slew-rate,...
he LM6181 current-feedback amplifier offers an unparalleled combination of bandwidth, slew-rate, and output current. The amplifier can directly drive up to 100 pF capacitive loads without oscillating and a 10V signal into a 50W or 75W back-terminated coax cable system over the full industrial temperature range. This represents a radical enhancement in output drive capability for an 8-pin DIP high-speed amplifier making it ideal for video applications.
Built on National's advanced high-speed VIP™ II (Vertically Integrated PNP) process, the LM6181 employs currentfeedback providing bandwidth that does not vary dramatically with gain; 100 MHz at AV = −1, 60 MHz at AV = −10. With a slew rate of 2000V/µs, 2nd harmonic distortion of −50 dBc at 10 MHz and settling time of 50 ns (0.1%) the LM6181 dynamic performance makes it ideal for data acquisition, high speed ATE, and precision pulse amplifier applications.
Supply Voltage ±18V
Differential Input Voltage ±6V
Input Voltage ±Supply Voltage
Inverting Input Current 15 mA
Soldering Information
Dual-In-Line Package (N)
Soldering (10 sec) 260°C
Small Outline Package (M)
Vapor Phase (60 seconds) 215°C
Infrared (15 seconds) 220°C
Output Short Circuit (Note 7)
Storage Temperature Range −65°C TJ +150°C
Maximum Junction Temperature 150°C
ESD Rating (Note 2) ±3000V
LM6181
PDF/DataSheet Download
IC AMP DUAL HI SPD LP V FB 8-DIP
IC AMP DUAL HI SPD LP V FB 8SOIC
IC AMP DUAL HI SPD LP V FB 8SOIC

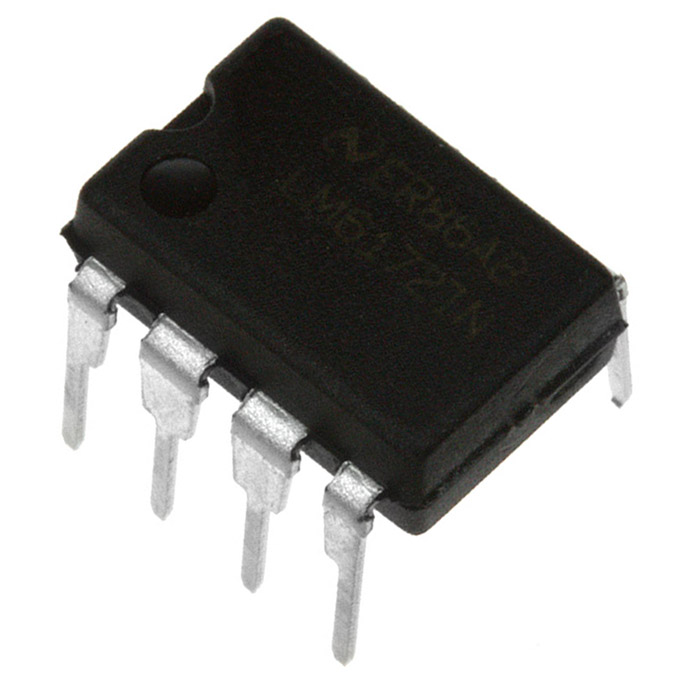

The LM6172 is a dual high speed voltage feedback amplifier. It is unity-gain stable and provides excellent DC and AC performance. With 100MHz unity-gain bandwidth, 3000V/µs slew rate and 50mA of output current per channel, the LM6172 offers high perfor...
IC AMP HI SPD LOW PWR V FB 8-DIP
The LM6171BIN belongs to LM6171 family which is a high speed unity-gaistable voltage feed-back amplifier which offers a high slew rate of 3600V/s and a unity-gaibandwidth of 100 MHz while consuming only 2.5 mA of supply current, it also has very impressive A...
