LM6182

Features: (Typical unless otherwise noted)Slew Rate: 2000 V/sClosed Loop Bandwidth: 100 MHzSettling Time (0.1%): 50 nsLow Differential Gain and Phase Error: 0.05%, 0.04° RL = 150WLow Offset Voltage: 2 mVHigh Output Drive: ±10V into 150WCharacterized for Supply Ranges: ±5V and ±15VImproved Performa...

product image

LM6182 Picture
See larger image
SeekIC No. : 004396056 Detail

LM6182: Features: (Typical unless otherwise noted)Slew Rate: 2000 V/sClosed Loop Bandwidth: 100 MHzSettling Time (0.1%): 50 nsLow Differential Gain and Phase Error: 0.05%, 0.04° RL = 150WLow Offset Voltage:...

LM6182 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM6182
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

(Typical unless otherwise noted)
Slew Rate: 2000 V/s
Closed Loop Bandwidth: 100 MHz
Settling Time (0.1%): 50 ns
Low Differential Gain and Phase Error: 0.05%, 0.04° RL = 150W
Low Offset Voltage: 2 mV
High Output Drive: ±10V into 150W
Characterized for Supply Ranges: ±5V and ±15V
Improved Performance over OP260 and LT1229


Application

Coax Cable Driver
Professional Studio Video Equipment
Flash ADC Buffer
PC and Workstation Video Boards
Facsimile and Imaging Systems


Pinout

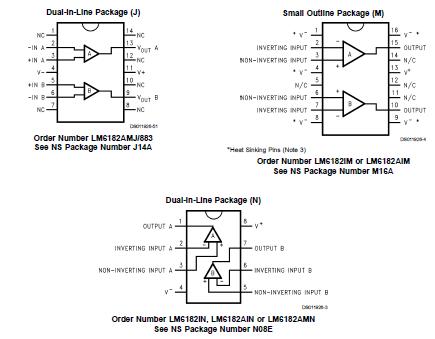

Connection Diagram


Specifications

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage                                   ±18V
Differential Input Voltage                     ±6V
Input Voltage                   ±Supply Voltage
Inverting Input Current                    15 mA
Output Short Circuit                       (Note 4)


Description

The LM6182 dual current feedback amplifier offers an unparalleled combination of bandwidth, slew-rate, and output current. Each amplifier can directly drive a 2V signal into a 50W or 75W back-terminated coax cable system over the full industrial temperature range. This represents a radical enhancement in output drive capability for a dual 8-pin high-speed amplifier making it ideal for video applications. Built on National's advanced high-speed VIP II™ (Vertically Integrated PNP) process, the LM6182 employs current-feedback providing bandwidth that does not vary dramatically with gain; 100 MHz at Av = −1, 60 MHz at Av = −10. With a slew rate of 2000 V/sec, 2nd harmonic distortion of −50 dBc at 10 MHz and settling time of 50 ns (0.1%), the two independent amplifiers of the LM6182 offer performance that is ideal for data acquisition, high-speed ATE, and precision pulse amplifier applications.

See the LM6181 data sheet for a single amplifier with these same features.
