General Description
LM675 General Description
The LM675 is a monolithic power operational amplifier featuring wide bandwidth and low input offset voltage, making it equally suitable for AC and DC applications.
The LM675 is capable of delivering output currents in excess of 3 amps, operating at supply voltages of up to 60V. The device overload protection consists of both internal current limiting and thermal shutdown. The amplifier is also internally compensated for gains of 10 or greater.
LM675 Maximum Ratings
Supply Voltage .............. ±30V
Input Voltage .......... −VEE to VCC
Operating Temperature ... 0°C to +70°C
Storage Temperature ..−65°C to +150°C
Junction Temperature .........150°C
Power Dissipation (Note 2)...... 30W
Lead Temperature
(Soldering, 10 seconds)....... 260°C
ESD rating to be determined.
Input Voltage .......... −VEE to VCC
Operating Temperature ... 0°C to +70°C
Storage Temperature ..−65°C to +150°C
Junction Temperature .........150°C
Power Dissipation (Note 2)...... 30W
Lead Temperature
(Soldering, 10 seconds)....... 260°C
ESD rating to be determined.
LM675 Features
` 3A current capability
` AVO typically 90 dB
` 5.5 MHz gain bandwidth product
` 8 V/s slew rate
`Wide power bandwidth 70 kHz
` 1 mV typical offset voltage
` Short circuit protection
` Thermal protection with parole circuit (100% tested)
` 16V60V supply range
` Wide common mode range
` Internal output protection diodes
` 90 dB ripple rejection
` Plastic power package TO-220
` AVO typically 90 dB
` 5.5 MHz gain bandwidth product
` 8 V/s slew rate
`Wide power bandwidth 70 kHz
` 1 mV typical offset voltage
` Short circuit protection
` Thermal protection with parole circuit (100% tested)
` 16V60V supply range
` Wide common mode range
` Internal output protection diodes
` 90 dB ripple rejection
` Plastic power package TO-220
LM675 Typical Application
· High performance power op amp
· Bridge amplifiers
· Motor speed controls
· Servo amplifiers
· Instrument systems
· Bridge amplifiers
· Motor speed controls
· Servo amplifiers
· Instrument systems
LM675
PDF/DataSheet Download
- Datasheet: LM675
- File Size: 209883 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·LM60
- NSC [National Semiconductor]
- 2.7V, SOT-23 or TO-92 Temperature Sensor
- 226894 KB
- ·LM604
- NSC [National Semiconductor]
- 4 CHANNEL MUX-AMP
- 796757 KB
- ·LM6041IN
- NSC [National Semiconductor]
- CMOS Single Micropower Operational Amplifier
- 390808 KB
- ·LM604ACM
- NSC [National Semiconductor]
- 4 CHANNEL MUX-AMP
- 796757 KB
- ·LM604ACN
- NSC [National Semiconductor]
- 4 CHANNEL MUX-AMP
- 796757 KB
- ·LM604AMJ
- NSC [National Semiconductor]
- 4 CHANNEL MUX-AMP
- 796757 KB
- ·LM604CM
- NSC [National Semiconductor]
- 4 CHANNEL MUX-AMP
- 796757 KB
- ·LM604CN
- NSC [National Semiconductor]
- 4 CHANNEL MUX-AMP
- 796757 KB
LM675 Relative Products
LM66
The LM66 is a precision low power thermostat. Two stable temperature trip points (VT1 and VT2) are generated by dividing down the LM66 1.250V bandgap voltage reference using a resistors divider network. The LM66 has two digital outputs. OUT1 goes LOW when th...

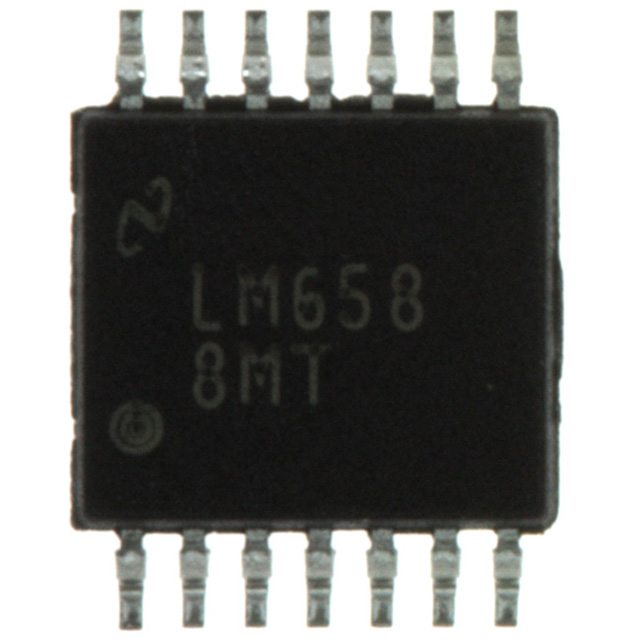

LM6588MTX/NOPB
IC OPAMP TFT-LCD QD 16V 14-TSSOP
LM6588MT/NOPB
IC OPAMP TFT-LCD QD 16V 14TSSOP
LM6588MAX/NOPB
IC OPAMP TFT-LCD QUAD 16V 14SOIC

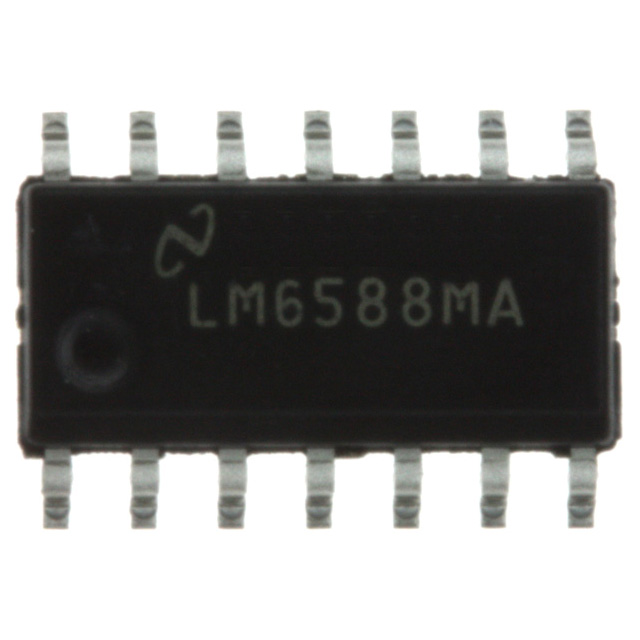

LM6588MA/NOPB
