LM9627

Features: • Supplied with micro lenses• Video or snapshot operations• Programmable pixel clock, inter-frame and inter-line delays.• Programmable partial or full frame integration• Programmable gain adjustment• Horizontal & vertical sub-sampling (2:1 & 4:...

product image

LM9627 Picture
See larger image
SeekIC No. : 004396286 Detail

LM9627: Features: • Supplied with micro lenses• Video or snapshot operations• Programmable pixel clock, inter-frame and inter-line delays.• Programmable partial or full frame integra...

LM9627 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM9627
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supplied with micro lenses
• Video or snapshot operations
• Programmable pixel clock, inter-frame and inter-line delays.
• Programmable partial or full frame integration
• Programmable gain adjustment
• Horizontal & vertical sub-sampling (2:1 & 4:2)
• Windowing
• External snapshot trigger & event synchronisation signals
• Auto black level compensation
• Flexible digital video read-out supporting programmable:
   - polarity for synchronisation and pixel clock signals
   - leading edge adjustment for horizontal synchronization
• Programmable via 2 wire I2C compatible serial interface
• Power on reset & power down mode


Application

• PC Camera
• Digital Still Camera
• Video Conferencing
• Security Cameras
• Toys
• Machine Vision

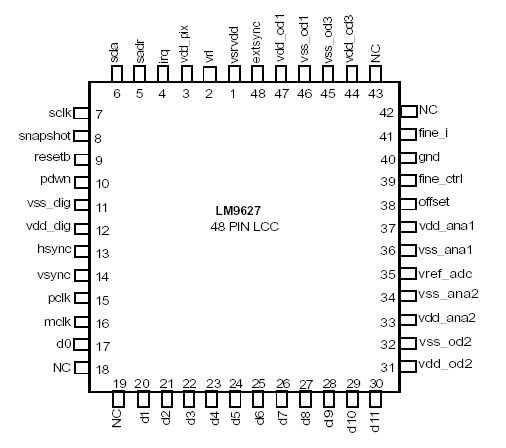

Pinout

Connection Diagram


Specifications

Any Positive Supply Voltage .........................................................6.5V
Voltage On Any Input or Output Pin ...............................-0.5V to 6.5V
Input Current at any pin (Note 3) ...........................................±25mA
ESD Susceptibility (Note 5)
Human Body Model ...................................................................2000V
Machine Model ............................................................................200V
Package Input Current (Note 3) ..............................................±50mA
Package Power Dissipation @ TA(Note 4) ...................................2.5W
Soldering Temperature Infrared,
10 seconds (Note 6) ................................................................220°C
Storage Temperature ...............................................-40°C to 125°C


Description

The LM9627 is a high performance, low power, third inch VGA CMOS Active Pixel Sensor capable of capturing color digital still or motion images and converting them to a digital data stream. In addition to the active pixel array, an on-chip 12 bit A/D convertor, fixed pattern noise elimination circuits and a video gain amplifier is provided. Furthermore, an integrated programmable smart timing and control circuit allows the user maximum flexibility in adjusting integration time, active window size, gain and frame rate. Various control, timing and power modes are also provided.
