Part Number: LMC2001
Description: The LMC2001 is a new precision amplifier that offers un- precedented accuracy and stability at an affordable price a...
- Table of contents:
LMC2001
-
Suppliers
DataSheet
General Description
LMC2001 General Description
The LMC2001 is a new precision amplifier that offers un- precedented accuracy and stability at an affordable price and is offered in miniature (SOT23-5) package. This device utilizes patented techniques to measure and continually cor- rect the input offset error voltage. The result is an amplifier which is ultra stable over time, and temperature. It has excel- lent CMRR and PSRR ratings, and does not exhibit the fa- miliar 1/f voltage and current noise increase that plagues tra- ditional amplifiers. The combination of the LMC2001 characteristics makes it a good choice for transducer ampli- fiers, high gain configurations, ADC buffer amplifiers, DAC I-V conversion, and any other 5V application requiring preci- sion and/or stability.
Other useful benefits of the LMC2001 are rail-to-rail output, low supply current of 750µA, and wide gain-bandwidth product of 6MHz. The LMC2001 comes in 5 pin SOT23 and 8 pin SOIC. These extremely versatile features found in the LMC2001 provide high performance and ease of use.
LMC2001 Maximum Ratings
ESD Tolerance (Note 2)
Human Body Model 2500V
Machine Model 150V
Differential Input Voltage ± Supply Voltage
Supply Voltage (V+-V-) 5.6V
Current At Input Pin 30mA
Current At Output Pin 30mA
Current At Power Supply Pin (Note 3) 50mA
Lead Temperature (soldering, 10 sec)
260˚CStorage Temperature Range -65˚C to 150˚C
Junction Temperature (TJ )(Note 4) 150˚C
Human Body Model 2500V
Machine Model 150V
Differential Input Voltage ± Supply Voltage
Supply Voltage (V+-V-) 5.6V
Current At Input Pin 30mA
Current At Output Pin 30mA
Current At Power Supply Pin (Note 3) 50mA
Lead Temperature (soldering, 10 sec)
260˚CStorage Temperature Range -65˚C to 150˚C
Junction Temperature (TJ )(Note 4) 150˚C
LMC2001 Features
(Vs=5V,RL = 10K to V+ /2, Typ. Unless Noted)
Low Guaranteed Vos 40µV
e With No 1/f 85nVHz
High CMRR 120dB
High PSRR 120dB
High AVOL 137dB
Wide Gain-Bandwidth Product 6MHz
High Slew Rate 5V/µs
Low Supply Current 750µA
Rail-To-Rail Output 30mV from either rail
No External Capacitors Required
Low Guaranteed Vos 40µV
e With No 1/f 85nVHz
High CMRR 120dB
High PSRR 120dB
High AVOL 137dB
Wide Gain-Bandwidth Product 6MHz
High Slew Rate 5V/µs
Low Supply Current 750µA
Rail-To-Rail Output 30mV from either rail
No External Capacitors Required
LMC2001 Typical Application
Precision Instrumentation Amplifiers
Thermocouple Amplifiers
Strain Gauge Bridge Amplifier
Thermocouple Amplifiers
Strain Gauge Bridge Amplifier

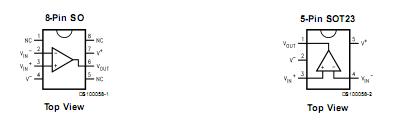

LMC2001 Connection Diagram
LMC2001
PDF/DataSheet Download
- Datasheet: LMC2001
- File Size: 440407 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
