LMC7211

Features:

Tiny SOT 23-5 package saves space
Package is less than 1.43 mm thick
Guaranteed specs at 2.7V, 5V, 15V supplies
Typical supply current 7 A at 5V
Response time of 4 s at 5V
LMC7211-push-pull output
Input common-mode range beyond V⁻ and V⁺
Low input current




Application

Battery Powered Products
Notebooks and PDAs
PCMCIA cards
Mobile Communications
Alarm and Security circuits
Direct Sensor Interface
Replaces amplifiers used as comparators with better performance and lower current

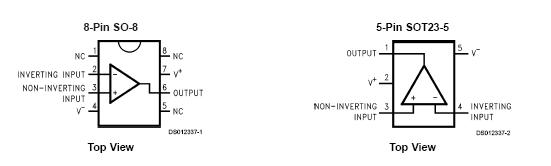

Pinout






Specifications

Response Time	4 us
Output Bus	Push Pull
Supply Min	2.7 Volt
Supply Max	15 Volt
Channels	1 Channels
Offset Voltage max, 25C	15, 5 mV
Output Current	30 mA
Input Range	R-R Input
Supply Current Per Channel	0.007 mA
PowerWise Rating 3	28 uA x us
Max Input Bias Current	1 nA
Special Features	Undefined
Temperature Min	-40 deg C
Temperature Max	85 deg C
Function	Comparator
Automotive Selection Guide	Yes
View Using Catalog

ESD Tolerance 2 kV
Differential Input Voltage(V_CC) +0.3V to (−V_CC)−0.3V
Voltage at Input/Output Pin (V_CC) + 0.3V to (−V_CC)−0.3V
Supply Voltage (V⁺ V⁻ ) 16V
Current at Input Pin ±5 mA
Current at Output Pin ±30 mA
Current at Power Supply Pin 40 mA
Lead Temperature
(soldering, 10 sec) 260°C
Storage Temperature Range −65°C to +150°C
Junction Temperature 150°C




Description

The LMC7211 is a micropower CMOS comparator available in the space saving SOT23-5 package. This makes the comparator ideal for space and weight critical designs. The LMC7211 is supplied in two offset voltage grades, 5 mV and 15 mV.The main benefits of the Tiny package are most apparent in small portable electronic devices, such as mobile phones,pagers, notebook computers, personal digital assistants,and PCMCIA cards. The rail-to-rail input voltage makes the LMC7211 a good choice for sensor interfacing, such as light detector circuits, optical and magnetic sensors, and alarm and status circuits.The Tiny Comparator's outside dimensions (length x width x height) of 3.05mm x 3.00mm x 1.43mm allow it to fit into tight spaces on PC boards.
