LMD18201

Features: `Delivers up to 3A continuous output`Operates at supply voltages up to 55V`Low RDS(ON) typically 0.33 per switch`TTL and CMOS compatible inputs`No shoot-through current`Thermal warning flag output at 145°C`Thermal shutdown (outputs off) at 170°C`Internal clamp diodes`Shorted load prote...

product image

LMD18201 Picture
See larger image
SeekIC No. : 004396568 Detail

LMD18201: Features: `Delivers up to 3A continuous output`Operates at supply voltages up to 55V`Low RDS(ON) typically 0.33 per switch`TTL and CMOS compatible inputs`No shoot-through current`Thermal warning f...

LMD18201 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMD18201
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Delivers up to 3A continuous output
`Operates at supply voltages up to 55V
`Low RDS(ON) typically 0.33 per switch
`TTL and CMOS compatible inputs
`No "shoot-through" current
`Thermal warning flag output at 145°C
`Thermal shutdown (outputs off) at 170°C
`Internal clamp diodes
`Shorted load protection
`Internal charge pump with external bootstrap capability




Application

·DC and stepper motor drives
·Position and velocity servomechanisms
·Factory automation robots
·Numerically controlled machinery
·Computer printers and plotters

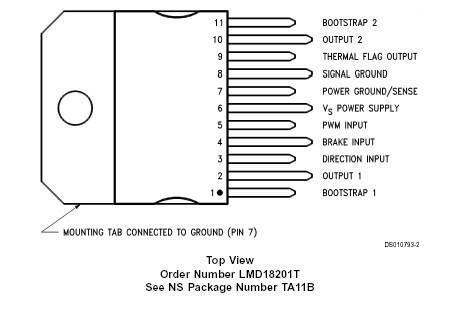

Pinout

Connection Diagram




Specifications

Total Supply Voltage (VS, Pin 6) .....................................................60V
Voltage at Pins 3, 4, 5 and 9 ..........................................................12V
Voltage at Bootstrap Pins (Pins 1 and 11) .........................VOUT + 16V
Peak Output Current (200 ms) .........................................................6A
Continuous Output Current (Note 2) ................................................3A
Power Dissipation (Note 3) ............................................................25W
Sense Voltage (Pin 7 to Pin 8) ......................................+0.5V to −1.0V
Power Dissipation (TA = 25, Free Air) ...........................................3W
Junction Temperature, TJ(max) ....................................................150
ESD Susceptibility (Note 4) .........................................................1500V
Storage Temperature, TSTG ........................................−40 to +150
Lead Temperature (Soldering, 10 sec.) ........................................300

Function H-Bridge Driver
Output Current 3000 mA
Channels 2 Channels
Supply Min 12 Volt
Supply Max 55 Volt
Temperature Min -40 deg C
Temperature Max 125 deg C
View Using Catalog





Description

The LMD18201 is a 3A H-Bridge designed for motion control applications. The device is built using a multi-technology process which combines bipolar and CMOS control circuitry with DMOS power devices on the same monolithic structure.

The H-Bridge configuration is ideal for driving DC and stepper motors. The LMD18201 accommodates peak output currents up to 6A. Current sensing can be achieved via a small sense resistor connected in series with the power ground lead. For current sensing without disturbing the path of current to the load, the LMD18200 is recommended.
