LME49600

PinoutSpecificationsTHD0.00003 %Supply Min4.5 VoltSingle/Dual/QuadSingleSpecial FeaturesAdj BWTHD ConditionsClosed loop with LME49710User Supply15 VoltSupply Current per Amplifier14.5 mASupply Max36 VoltShut downNoVoltage Noise2.6 nV/root(Hz)Supply Range+/-2.25V to +/-18VMax Input Bias Current5000...

product image

LME49600 Picture
See larger image
SeekIC No. : 004396584 Detail

LME49600: PinoutSpecificationsTHD0.00003 %Supply Min4.5 VoltSingle/Dual/QuadSingleSpecial FeaturesAdj BWTHD ConditionsClosed loop with LME49710User Supply15 VoltSupply Current per Amplifier14.5 mASupply Max36...

LME49600 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LME49600
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

THD0.00003 %
Supply Min4.5 Volt
Single/Dual/QuadSingle
Special FeaturesAdj BW
THD ConditionsClosed loop with LME49710
User Supply15 Volt
Supply Current per Amplifier14.5 mA
Supply Max36 Volt
Shut downNo
Voltage Noise2.6 nV/root(Hz)
Supply Range+/-2.25V to +/-18V
Max Input Bias Current5000 nA
Output Current250 mA
Gain Bandwidth180 MHz
Slew Rate2000 Volts/usec
Mono/StereoMono
Temperature Min-40 deg C
Temperature Max85 deg C
Channels1 Channels
Input OutputTypeNot Rail to Rail
Offset Voltage max, 25C60 mV
Automotive Selection GuideYes
View Using Catalog



Description

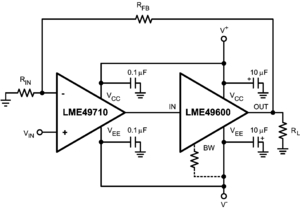

The LME49600 is a high performance, low distortion high fidelity 250mA audio buffer. The LME49600 is designed for a wide range of applications. It can be used inside the feedback loop of op amps.

The LME49600 offers a pin-selectable bandwidth: a low current, 110MHz bandwidth mode that consumes 7.3mA and a wide 180MHz bandwidth mode that consumes 13.2mA. In both modes the LME49600 has a nominal 2000V/s slew rate. Bandwidth is easily adjusted by either leaving the BW pin unconnected or connecting a resistor between the BW pin and the VEE pin.

The LME49600 is fully protected through internal current limit and thermal shutdown.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LME49600TS VIP III 0 14765 0 0 12125000 3 344050185

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.


Application Notes

Title Size in Kbytes Date
AN-1768: Application Note 1768 LME49600 Headphone Amplifier Evaluation Board User's Guide 533 Kbytes 29-Feb-08 Download
AN-1922: Application Note 1922 LM48511 Evaluation Board User`s Guide 1586 Kbytes 5-Nov-08 Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.
